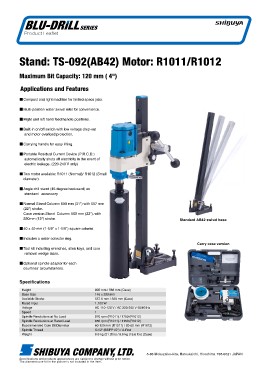

Page 10 - SHIBUYA E-CATALOG140419

BLU-DRILL SERIES

Product Leaflet

Stand: TS-092(AB42) Motor: R1011/R1012

Maximum Bit Capacity: 120 mm ( 4") Standard AB42 swivel base
Carry case version
Applications and Features

■ Compact and light machine for limited space jobs.

■ Multi-position water swivel inlet for convenience.

■ Right and left hand feed handle positions.

■ Built-in on/off switch with low voltage drop-out
and motor overload protection.

■ Carrying handle for easy lifting.

■ Portable Residual Current Device (P.R.C.D.)
automatically shuts off electricity in the event of
electric leakage. (220-240 V only)

■ Two motor available: R1011 (Normal)/ R1012 (Small
diameter).

■ Angle drill stand (45 degree backward) as
standard accessory.

■ Normal Stand Column: 800 mm (31") with 557 mm
(22") stroke.
Case version Stand Column: 560 mm (22"). with
320mm (12") stroke.

■ 40 x 40 mm (1-5/8" x 1-5/8") square column.

■ Includes a water collector ring.

■ Tool kit including wrenches, allen keys, and core
removal wedge lasso.

■ Optional spindle adaptor for each
countries' circumstances.

Specifications 805 mm / 568 mm (Case)
146 x 200 mm
Height 557.5 mm / 320 mm (Case)
Base Size 1,100 W
Available Stroke AC 110-120 V / AC 220-240 V 50/60 Hz
Rated Input 1
Voltage 970 rpm (R1011) / 1750 (R1012)
Speed 650 rpm (R1011) / 1150 (R1012)
Spindle Revolutions at No Load 60-120 mm (R1011) / 20-60 mm (R1012)
Spindle Revolutions at Rated Load G1/2” (BSPP1/2”) / A-Rod
Recommended Core Bit Diameter 9.6 kg (21.2lbs) / 8.9 kg (19.6 lbs) (Case)
Spindle Thread
Weight

5-86 Mokuzaiko-kita, Hatsukaichi, Hiroshima 738-0021 JAPAN

Specifications and products appearances are subject to change without prior notice.
The diamond core bit in the picture is not included in the item.
