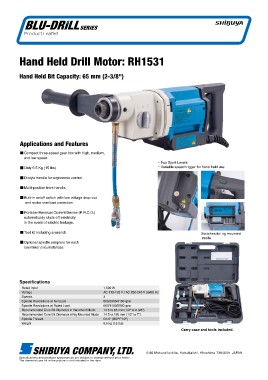

Page 19 - SHIBUYA E-CATALOG140419

BLU-DRILL SERIES

Product Leaflet

Hand Held Drill Motor: RH1531

Hand Held Bit Capacity: 65 mm (2-3/8")

Applications and Features ・Two Spirit Levels
・Variable speed trigger for hand held use
■ Compact three-speed gear box with high, medium,
and low speed. Switches for rig mounted
mode
■ Only 6.5 Kg (15 lbs).

■ D-style handle for ergonomic control.

■ Multi-position front handle.

■ Built-in on/off switch with low voltage drop-out
and motor overload protection.

■ Portable Residual Current Device (P.R.C.D.)
automatically shuts off electricity
in the event of electric leakage.

■ Tool kit including a wrench.

■ Optional spindle adaptors for each
countries' circumstances.

Specifications 1,500 W
AC 110-120 V / AC 220-240 V 50/60 Hz
Rated Input 3
Voltage 800/2000/4150 rpm
Speeds 560/1400/2900 rpm
Spindle Revolutions at No Load 14.5 to 65 mm (1/2” to 2-3/8”)
Spindle Revolutions at Rated Load 14.5 to 180 mm (1/2” to 7”)
Recommended Core Bit Diameter in Handheld Mode G1/2” (BSPP1/2”)
Recommended Core Bit Diameter inRig Mounted Mode 6.5 kg (15 lbs)
Spindle Thread
Weight

Carry case and tools included.

5-86 Mokuzaiko-kita, Hatsukaichi, Hiroshima 738-0021 JAPAN

Specifications and products appearances are subject to change without prior notice.
The diamond core bit in the picture is not included in the item.
