RETREAT HOUSE
DESIGN PROCESS
MOHAMMAD FIQRI

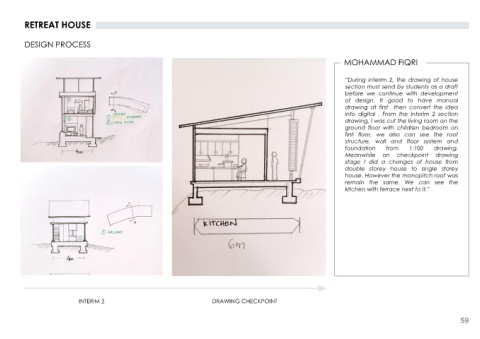

“During interim 2, the drawing of house
section must send by students as a draft
before we continue with development
of design. It good to have manual
Interim 2 drawing at first then convert the idea
into digital . From the interim 2 section
SECTION A-A drawing, I was cut the living room on the
ground floor with children bedroom on
first floor, we also can see the roof
structure, wall and floor system and
foundation from 1:100 drawing.
Meanwhile on checkpoint drawing
Drawing checkpoint stage I did a changes of house from
section double storey house to single storey
house. However the monopitch roof was
remain the same. We can see the
kitchen with terrace next to it.”
Interim 2
SECTION B-B
INTERIM 2 DRAWING CHECKPOINT
