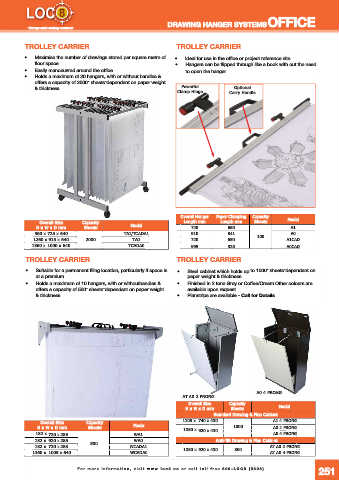

Page 251 - LOC8_catalouge

OFFICE
DRaWInG HanGeR SySteMS
Storage and handling solutions

tROLLey CaRRIeR tROLLey CaRRIeR

• Maximise the number of drawings stored per square metre of • Ideal for use in the office or project reference site
floor space • Hangers can be flipped through like a book with out the need
• Easily manoeuvred around the office to open the hanger
• Holds a maximum of 20 hangers, with or without handles &
offers a capacity of 2000* sheets*dependant on paper weight
& thickness Powerful Optional
Clamp Hinge Carry Handle

Overall Hanger Paper Clamping Capacity Model
Overall Size Capacity Model Length mm Length mm Sheets
H x W x D mm Sheets 720 650 A1
960 x 725 x 640 TA1/TCADA1 910 841 100 A0
1260 x 915 x 640 2000 TA0 720 650 A1CAD
1360 x 1000 x 640 TCADA0 995 925 A0CAD

tROLLey CaRRIeR tROLLey CaRRIeR

• Suitable for a permanent filing location, particularly if space is • Steel cabinet which holds up to 1000* sheets*dependant on
at a premium paper weight & thickness
• Holds a maximum of 10 hangers, with or withouthandles & • Finished in 2 tone Grey or Coffee/Cream.Other colours are
offers a capacity of 500* sheets*dependant on paper weight available upon request
& thickness • Planstrips are available - Call for Details

A0 4 PRONG
AT A0 2 PRONG
Overall Size Capacity
H x W x D mm Sheets Model
Standard Drawing & Plan Cabinet
Overall Size Capacity 1105 x 740 x 430 A1 4 PRONG
H x W x D mm Sheets Model 1380 x 920 x 430 1000 A0 2 PRONG
182 x 730 x 285 WA1 A0 4 PRONG
182 x 920 x 285 WA0 Anti-Tilt Drawing & Plan Cabinet
182 x 730 x 285 500 WCADA1 1380 x 920 x 430 800 AT A0 2 PRONG
1360 x 1005 x 640 WCADA0 AT A0 4 PRONG

251
