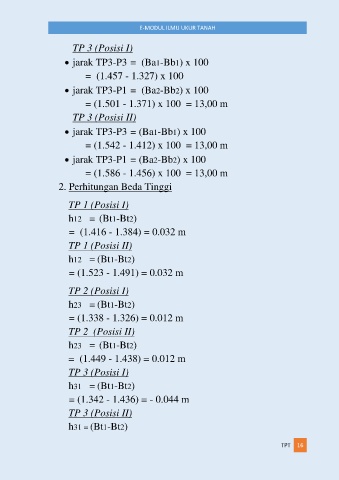

Page 17 - Modul TPT X

E-MODUL ILMU UKUR TANAH

TP 3 (Posisi I)

 jarak TP3-P3 = (Ba1-Bb1) x 100

= (1.457 - 1.327) x 100

 jarak TP3-P1 = (Ba2-Bb2) x 100

= (1.501 - 1.371) x 100 = 13,00 m
TP 3 (Posisi II)

 jarak TP3-P3 = (Ba1-Bb1) x 100
= (1.542 - 1.412) x 100 = 13,00 m

 jarak TP3-P1 = (Ba2-Bb2) x 100

= (1.586 - 1.456) x 100 = 13,00 m

2. Perhitungan Beda Tinggi

TP 1 (Posisi I)

h12 = (Bt1-Bt2)

= (1.416 - 1.384) = 0.032 m
TP 1 (Posisi II)

h12 = (Bt1-Bt2)
= (1.523 - 1.491) = 0.032 m

TP 2 (Posisi I)

h23 = (Bt1-Bt2)
= (1.338 - 1.326) = 0.012 m

TP 2 (Posisi II)

h23 = (Bt1-Bt2)

= (1.449 - 1.438) = 0.012 m

TP 3 (Posisi I)

h31 = (Bt1-Bt2)

= (1.342 - 1.436) = - 0.044 m

TP 3 (Posisi II)

h31 = (Bt1-Bt2)
