45

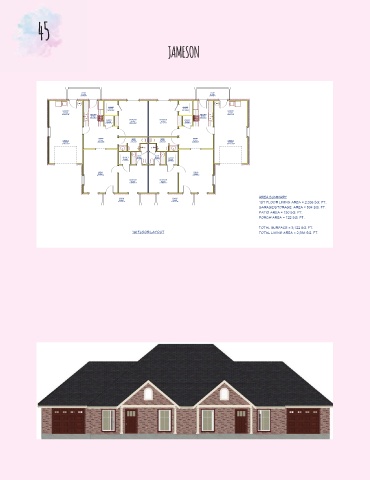

JAMESON

PATIO PATIO
8' CLG 8' CLG
14'-1" X 4'-7" 14'-1" X 4'-7"
W H W H
CLOSET CLOSET
8' CLG 8' CLG
LAUNDRY 5'-6" X 5'-10" 5'-6" X 5'-10" LAUNDRY
8' CLG 8' CLG
13'-6" X 7'-10" KITCHEN KITCHEN 13'-6" X 7'-6"
8' CLG 8' CLG
8'-2" X 10'-3" 8'-2" X 10'-3"
PANTRY BEDROOM BEDROOM PANTRY
8' CLG 8' CLG 8' CLG 8' CLG
3'-10" X 3'-11" 13'-5" X 14'-5" 13'-5" X 14'-5" 3'-10" X 3'-11"
DINING BATH BATH DINING
8' CLG
8' CLG
GARAGE 14'-0" X 9'-3" 8' CLG 8' CLG 14'-0" X 9'-3" GARAGE
8' CLG 8'-7" X 5'-8" 4'-9" X 5'-8" 8' CLG
13'-6" X 17'-6" 13'-6" X 17'-10"
BATH BATH
CLOSET 8' CLG 8' CLG CLOSET
8' CLG 6'-9" X 5'-0" 6'-9" X 5'-0"
4'-9" X 5'-0" 8' CLG
4'-9" X 5'-0"
LIVING LIVING
8' CLG 8' CLG
14'-0" X 17'-6" 14'-0" X 17'-6"
BEDROOM BEDROOM
8' CLG 8' CLG
11'-10" X 11'-2" 11'-10" X 11'-2"
AREA SUMMARY
PORCH PORCH
8' CLG 8' CLG
15'-8" X 3'-10" 15'-8" X 3'-10" 1ST FLOOR LIVING AREA = 2.336 SQ. FT.
GARAGE/STORAGE AREA = 534 SQ. FT.
PATIO AREA = 130 SQ. FT.
PORCH AREA = 122 SQ. FT.
TOTAL SURFACE = 3,122 SQ. FT.
1st FLOOR LAYOUT TOTAL LIVING AREA = 2,336 SQ. FT.
