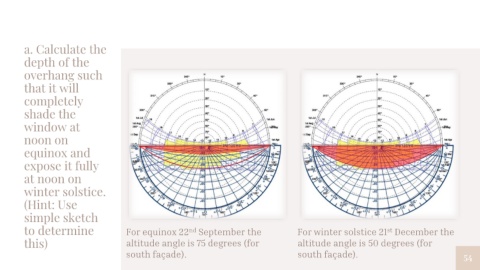

a. Calculate the
depth of the
overhang such
that it will
completely
shade the
window at
noon on
equinox and
expose it fully
at noon on
winter solstice.
(Hint: Use
simple sketch
to determine For equinox 22 nd September the For winter solstice 21 December the
st
this) altitude angle is 75 degrees (for altitude angle is 50 degrees (for
south façade). south façade). 54
