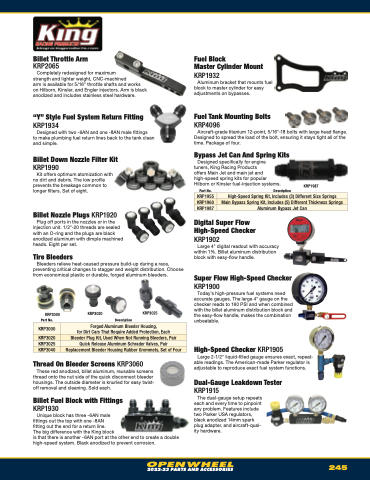

Page 247 - 2022-23 Auto Performance Open Wheel Catalog

Billet Throttle Arm
KRP2065
Completely redesigned for maximum
strength and lighter weight, CNC-machined
arm is available for 5/16" throttle shafts and works on Hilborn, Kinsler, and Engler injectors. Arm is black anodized and includes stainless steel hardware.
“Y” Style Fuel System Return Fitting
KRP1934
Designed with two -6AN and one -8AN male fittings
to make plumbing fuel return lines back to the tank clean and simple.
Billet Down Nozzle Filter Kit
KRP1990
Kit offers optimum atomization with no dirt and debris. The low profile prevents the breakage common to longer filters. Set of eight.
Billet Nozzle Plugs KRP1920 Plug off ports in the nozzles or in the injection unit. 1/2"-20 threads are sealed
with an O-ring and the plugs are black anodized aluminum with dimple machined heads. Eight per set.
Tire Bleeders
Fuel Block
Master Cylinder Mount
KRP1932
Aluminum bracket that mounts fuel block to master cylinder for easy adjustments on bypasses.
Fuel Tank Mounting Bolts
KRP4096
Aircraft-grade titanium 12-point, 5/16"-18 bolts with large head flange. Designed to spread the load of the bolt, ensuring it stays tight all of the time. Package of four.
Bypass Jet Can And Spring Kits
Designed specifically for engine tuners, King Racing Products
offers Main Jet and main jet and high-speed spring kits for popular Hilborn or Kinsler fuel-injection systems.
KRP1987
Part No.
Digital Super Flow
High-Speed Checker
KRP1902
Description
KRP1955
High-Speed Spring Kit, Includes (3) Different Size Springs
KRP1960
Main Bypass Spring Kit, Includes (5) Different Thickness Springs
KRP1987
Aluminum Bypass Jet Can
Bleeders relieve heat-caused pressure build-up during a race, preventing critical changes to stagger and weight distribution. Choose from economical plastic or durable, forged aluminum bleeders.
Large 4" digital readout with accuracy within 1%. Billet aluminum distribution block with easy-flow handle.
Super Flow High-Speed Checker
KRP1900
Today’s high-pressure fuel systems need accurate gauges. The large 4" gauge on the checker reads to 160 PSI and when combined with the billet aluminum distribution block and the easy-flow handle, makes the combination unbeatable.
KRP3000
Part No.
KRP3020
KRP3025
Description
KRP3000
Forged Aluminum Bleeder Housing,
for Dirt Cars That Require Added Protection, Each
KRP3020
Bleeder Plug Kit, Used When Not Running Bleeders, Pair
KRP3025
Quick Release Aluminum Schrader Valves, Pair
KRP3040
Replacement Bleeder Housing Rubber Grommets, Set of Four
Thread On Bleeder Screens KRP3060 These red anodized, billet aluminum, reusable screens thread onto the nut side of the quick disconnect bleeder
housings. The outside diameter is knurled for easy twist- off removal and cleaning. Sold each.
Billet Fuel Block with Fittings
KRP1930
Unique block has three -6AN male
fittings out the top with one -8AN
fitting out the end for a return line.
The big difference with the King block
is that there is another -6AN port at the other end to create a double high-speed system. Black anodized to prevent corrosion.
High-Speed Checker KRP1905
Large 2-1/2" liquid-filled gauge ensures exact, repeat-
able readings. The American-made Parker regulator is adjustable to reproduce exact fuel system functions.
Dual-Gauge Leakdown Tester
KRP1915
The dual-gauge setup repeats each and every time to pinpoint any problem. Features include two Parker USA regulators, black anodized 14mm spark plug adapter, and aircraft-qual- ity hardware.
