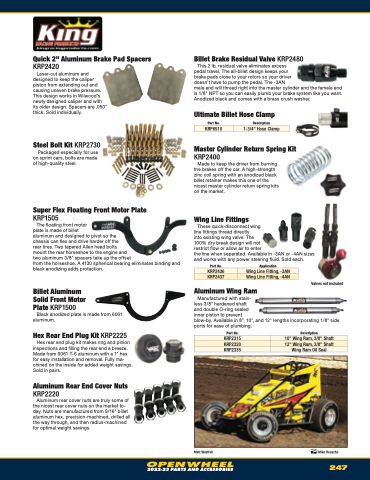

Page 249 - 2022-23 Auto Performance Open Wheel Catalog

Quick 2" Aluminum Brake Pad Spacers
KRP2420
Laser-cut aluminum and designed to keep the caliper piston from extending out and causing uneven brake pressure. This design works in Wilwood’s newly designed caliper and with its older design. Spacers are .050" thick. Sold individually.
Steel Bolt Kit KRP2730 Packaged especially for use on sprint cars, bolts are made
of high-quality steel.
Super Flex Floating Front Motor Plate
KRP1505
The floating front motor
plate is made of billet
aluminum and designed to pivot so the
chassis can flex and drive harder off the
rear tires. Two tapered Allen head bolts
mount the rear horseshoe to the engine and
two aluminum 3/8" spacers take up the offset
from the horseshoe. A 4130 spherical bearing eliminates binding and black anodizing adds protection.
Billet Aluminum
Solid Front Motor
Plate KRP1500
Black anodized plate is made from 6061
aluminum.
Hex Rear End Plug Kit KRP2225 Hex rear end plug kit makes ring and pinion
inspections and filling the rear end a breeze. Made from 6061 T-6 aluminum with a 1" hex for easy installation and removal. Fully ma- chined on the inside for added weight savings. Sold in pairs.
Aluminum Rear End Cover Nuts
KRP2220
Aluminum rear cover nuts are truly some of the nicest rear cover nuts on the market to- day. Nuts are manufactured from 9/16" billet aluminum hex, precision-machined, drilled all the way through, and then radius-machined for optimal weight savings.
Billet Brake Residual Valve KRP2480 This 2 lb. residual valve eliminates excess
pedal travel. The all-billet design keeps your
brake pads close to your rotors so your driver
doesn’t have to pump the pedal. The -3AN
male end will thread right into the master cylinder and the female end is 1/8" NPT so you can easily plumb your brake system like you want. Anodized black and comes with a brass crush washer.
Ultimate Billet Hose Clamp
Part No. Description
Master Cylinder Return Spring Kit
KRP2400
Made to keep the driver from burning the brakes off the car. A high-strength zinc coil spring with an anodized black billet retainer makes this one of the nicest master cylinder return spring kits on the market.
Wing Line Fittings
These quick-disconnect wing
line fittings thread directly
into existing wing valve. The
100% dry break design will not
restrict flow or allow air to enter
the line when separated. Available in -3AN or -4AN sizes and works with any power steering fluid. Sold each.
KRP6510
1-3/4" Hose Clamp
Part No.
Aluminum Wing Ram
Application
KRP2436
Wing Line Fitting, -3AN
KRP2437
Wing Line Fitting, -4AN
Manufactured with stain-
less 3/8" hardened shaft
and double O-ring sealed
inner piston to prevent
blow-by. Available in 8", 10", and 12" lengths incorporating 1/8" side ports for ease of plumbing.
Part No.
Description
Valves not included
KRP2315
10" Wing Ram, 3/8" Shaft
KRP2320
12" Wing Ram, 3/8" Shaft
KRP2335
Wing Ram Oil Seal
2022-23 PARTS AND ACCESSORIES
247
Matt Westfall
Mike Reusche
