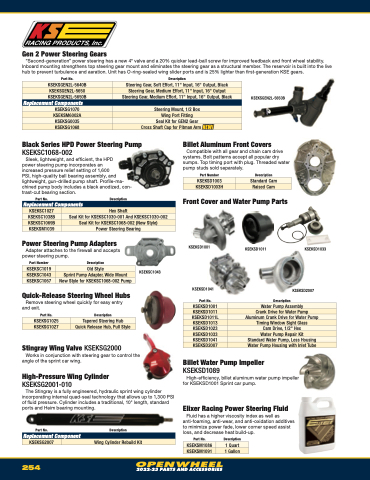

Page 256 - 2022-23 Auto Performance Open Wheel Catalog

Gen 2 Power Steering Gears
“Second-generation” power steering has a new 4° valve and a 20% quicker lead-ball screw for improved feedback and front wheel stability. Inboard mounting strengthens top steering gear mount and eliminates the steering gear as a structural member. The reservoir is built into the live hub to prevent turbulence and aeration. Unit has O-ring-sealed wing slider ports and is 25% lighter than first-generation KSE gears.
Part No.
Replacement Components
Black Series HPD Power Steering Pump
Description
KSEKSGEN2L-5640B
Steering Gear, Soft Effort, 11" Input, 16" Output, Black
KSEKSGEN2L-5650
Steering Gear, Medium Effort, 11" Input, 16" Output
KSEKSGEN2L-5650B
Steering Gear, Medium Effort, 11" Input, 16" Output, Black
KSEKSG1070
Steering Mount, 1/2 Box
KSEKSM6002A
Wing Port Fitting
KSEKSG0035
Seal Kit for GEN2 Gear
KSEKSG1068
Cross Shaft Cap for Pitman Arm NEW!
KSEKSC1068-002
Sleek, lightweight, and efficient, the HPD
power steering pump incorporates an
increased pressure relief setting of 1,600
PSI, high-quality ball bearing assembly, and lightweight, gun-drilled pump shaft. Profile-ma- chined pump body includes a black anodized, con- trast-cut bearing section.
Part No. Description
Replacement Components
Power Steering Pump Adapters
Adapter attaches to the firewall and accepts power steering pump.
Part Number Description
Quick-Release Steering Wheel Hubs
Remove steering wheel quickly for easy entry and exit.
Part No. Description
KSEKSGEN2L-5650B
Billet Aluminum Front Covers
Compatible with all gear and chain cam drive systems. Bolt patterns accept all popular dry sumps. Top timing port with plug. Threaded water pump studs sold separately.
Part Number
Description
KSEKSD1003
Standard Cam
KSEKSD1003H
Raised Cam
Front Cover and Water Pump Parts
KSEKSC1027
Hex Shaft
KSEKSC1038B
Seal Kit for KSEKSC1030-001 And KSEKSC1030-002
KSEKSC1069B
Seal Kit for KSEKSC1068-002 (New Style)
KSEKSM1039
Power Steering Bearing
KSEKSD1001
KSEKSD1041
Part No.
KSEKSD1011
KSEKSD1033
KSEKSD2007
KSEKSC1019
Old Style
KSEKSC1043
Sprint Pump Adapter, Wide Mount
KSEKSC1067
New Style for KSEKSC1068-002 Pump
KSEKSC1043
Description
KSEKSD1001
Water Pump Assembly
KSEKSD1011
Crank Drive for Water Pump
KSEKSD1011L
Aluminum Crank Drive for Water Pump
KSEKSD1013
Timing Window Sight Glass
KSEKSD1023
Cam Drive, 1/2" Hex
KSEKSD1033
Water Pump Repair Kit
KSEKSD1041
Standard Water Pump, Less Housing
KSEKSD2007
Water Pump Housing with Inlet Tube
KSEKSG1025
Tapered Steering Hub
KSEKSG1027
Quick Release Hub, Pull Style
Stingray Wing Valve KSEKSG2000
Works in conjunction with steering gear to control the
angle of the sprint car wing.
High-Pressure Wing Cylinder
KSEKSG2001-010
The Stingray is a fully engineered, hydraulic sprint wing cylinder incorporating internal quad-seal technology that allows up to 1,300 PSI of fluid pressure. Cylinder includes a traditional, 10" length, standard ports and Heim bearing mounting.
Billet Water Pump Impeller
KSEKSD1089
Part No.
Replacement Component
Description
High-efficiency, billet aluminum water pump impeller for KSEKSD1001 Sprint car pump.
Elixer Racing Power Steering Fluid
Fluid has a higher viscosity index as well as anti-foaming, anti-wear, and anti-oxidation additives to minimize power fade, lower corner speed assist loss, and decrease heat build-up.
Part No. Description
KSEKSG2007
Wing Cylinder Rebuild Kit
KSEKSM1086
1 Quart
KSEKSM1091
1 Gallon
