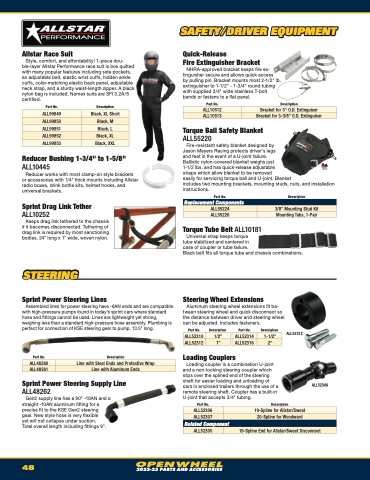

Page 50 - 2022-23 Auto Performance Open Wheel Catalog

Allstar Race Suit
Style, comfort, and affordability! 1-piece dou- ble-layer Allstar Performance race suit is box quilted with many popular features including side pockets, an adjustable belt, elastic wrist cuffs, hidden ankle cuffs, color-matching elastic back panel, adjustable neck strap, and a sturdy waist-length zipper. A black nylon bag is included. Nomex suits are SFI 3.2A/5 certified.
SAFETY/DRIVER EQUIPMENT
Quick-Release
Fire Extinguisher Bracket
NHRA-approved bracket keeps fire ex- tinguisher secure and allows quick access
by pulling pin. Bracket mounts most 2-1/2" lb. extinguisher to 1-1/2" - 1-3/4" round tubing with supplied 3/4" wide stainless T-bolt bands or fastens to a flat panel.
Part No.
Description
Part No.
Torque Ball Safety Blanket
ALL55220
Description
ALL10512
Bracket for 3" O.D. Extinguiser
ALL10513
Bracket for 3-3/8" O.D. Extinguiser
ALL99849
Black, XL Short
ALL99850
Black, M
ALL99851
Black, L
ALL99852
Black, XL
ALL99853
Black, XXL
Reducer Bushing 1-3/4" to 1-5/8"
ALL10445
Reducer works with most clamp-on style brackets or accessories with 1/4" thick mounts including Allstar radio boxes, drink bottle kits, helmet hooks, and universal brackets.
Sprint Drag Link Tether
ALL10252
Keeps drag link tethered to the chassis if it becomes disconnected. Tethering of drag link is required by most sanctioning bodies. 24" long x 1" wide, woven nylon.
STEERING
Sprint Power Steering Lines
Assembled lines for power steering have -6AN ends and are compatible with high-pressure pumps found in today’s sprint cars where standard hose and fittings cannot be used. Lines are lightweight yet strong, weighing less than a standard high-pressure hose assembly. Plumbing is perfect for connection of KSE steering gear to pump. 13.5" long.
Fire-resistant safety blanket designed by
Jason Meyers Racing protects driver's legs
and feet in the event of a U-joint failure.
Ballistic nylon-covered blanket weighs just
1-1/2 lbs. and has quick-release adjustable
straps which allow blanket to be removed
easily for servicing torque ball and U-joint. Blanket
includes two mounting brackets, mounting studs, nuts, and installation instructions.
Part No.
Replacement Components
Torque Tube Belt ALL10181 Universal strap keeps torque
tube stabilized and centered in
case of coupler or tube failure.
Description
ALL55224
3/8" Mounting Stud Kit
ALL55226
Mounting Tabs, 1-Pair
Black belt fits all torque tube and chassis combinations.
Steering Wheel Extensions
Aluminum steering wheel extensions fit be- tween steering wheel and quick disconnect so the distance between driver and steering wheel can be adjusted. Includes fasteners.
Part No. Description Part No. Description
Loading Couplers
Loading coupler is a combination U-joint and a non-locking steering coupler which slips over the splined end of the steering shaft for easier loading and unloading of cars in enclosed trailers through the use of a remote steering shaft. Coupler has a built-in U-joint that accepts 3/4" tubing.
ALL52312
ALL52310
1/2"
ALL52314
1-1/2"
ALL52312
1"
ALL52316
2"
Part No.
Description
ALL48260
Line with Steel Ends and Protective Wrap
ALL48261
Line with Aluminum Ends
Sprint Power Steering Supply Line
ALL48262
Gen2 supply line has a 90° -10AN and a straight -10AN aluminum fitting for a precise fit to the KSE Gen2 steering
gear. New style hose is very flexible
yet will not collapse under suction. Total overall length including fittings 9".
ALL52306
Part No.
Related Component
Description
ALL52306
19-Spline for Allstar/Sweet
ALL52307
20-Spline for Woodward
ALL52305
19-Spline End for Allstar/Sweet Disconnect
48
2022-23 PARTS AND ACCESSORIES
