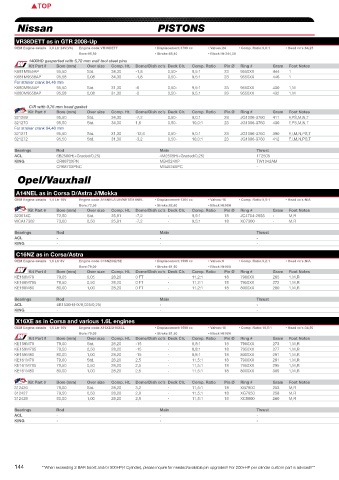

Nissan PISTONS COMPLEMENTARY PARTS
VR38DETT as in GTR 2008-Up
OEM Engine details 3,8 Ltr 24V(V6) Engine code:VR38DETT • Displacement:3799 cc • Valves:24 • Comp. Ratio:9,0:1 • Head cc’s:64,25 • Gasket thickness:0,80 • Rod Length:165,00
Bore:95,50 • Stroke:88,40 • Block Ht:244,00 NISSAN
1400HD gasported with 5,72 mm wall tool steel pins
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K681M955AP 95,50 Std. 34,30 -1,8 0,50- 9,5:1 23 9550XX 444 1 C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
K681M9558AP 95,58 0,08 34,30 -1,8 0,50- 9,5:1 23 9550XX 446 1 C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
For stroker crank 94,40 mm
K680M955AP 95,50 Std. 31,30 -6 0,50- 9,5:1 23 9550XX 430 1,M C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
K680M9558AP 95,58 0,08 31,30 -6 0,50- 9,5:1 23 9550XX 432 1,M C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
C/R with 0,76 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
321269 95,50 Std. 34,30 -7,2 0,50- 9,0:1 23 JG1006-3760 411 F,PS,M,N,T C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
321270 95,50 Std. 34,30 1,6 0,50- 10,0:1 23 JG1006-3760 430 F,PS,M,N,T C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
For stroker crank 94,40 mm
321271 95,50 Std. 31,30 -12,6 0,50- 9,0:1 23 JG1006-3760 390 F,I,M,N,PS,T C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
321272 95,50 Std. 31,30 -3,2 0,50- 10,0:1 23 JG1006-3760 412 F,I,M,N,PS,T C4572-032/C4573-032(left/right) NI6496-905 / R-NIS-006-I / R-NIS-006-IP -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B2500H(+Graded/0,25) 4M2505H(+Graded/0,25) 1T2505 202-4305 202-6101 202-5802
KING CR6870XPN MB4524XP TW1042AM
CR6870XPNC MB4524XPC -
Opel/Vauxhall
A14NEL as in Corsa D/Astra J/Mokka
OEM Engine details 1,4 Ltr 16V Engine code:A14NEL/LUH/NET/B14NEL • Displacement:1364 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:N/A • Gasket thickness:0,52 • Rod Length:130,30
Bore:72,50 • Stroke:82,60 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
323614C 72,50 Std. 25,91 -7,2 - 9,5:1 18 JC4704-2855 - M,R - - -
WCA17302 73,00 0,50 25,91 -7,2 - 9,5:1 18 XC7300 - M,R - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit OPEL/VAUXHALL
ACL - - - - - -
KING - - -
C16NZ as in Corsa/Astra
OEM Engine details 1,6 Ltr 8V Engine code:C16NZ/N2/SE • Displacement:1598 cc • Valves:8 • Comp. Ratio:9,2:1 • Head cc’s:N/A • Gasket thickness:1,30 • Rod Length:129,75
Bore:79,00 • Stroke:81,50 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE160M79 79,05 0,05 28,20 0 FT - 11,2:1 18 7900XX 265 1,M,R H1568SP5051S OPH5110BGWB4-A / R-OPE-002-I -
KE160M795 79,50 0,50 28,20 0 FT - 11,2:1 18 7950XX 272 1,M,R H1568SP5051S OPH5110BGWB4-A / R-OPE-002-I -
KE160M80 80,00 1,00 28,20 0 FT - 11,2:1 18 8000XX 280 1,M,R H1568SP5051S OPH5110BGWB4-A / R-OPE-002-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1530H(HX/0,025/0,25) - - - 109-6002 -
KING - - -
X16XE as in Corsa and various 1.6L engines
OEM Engine details 1,6 Ltr 16V Engine code:X16XE/X16XEL • Displacement:1598 cc • Valves:16 • Comp. Ratio:10,5:1 • Head cc’s:34,50 • Gasket thickness:1,27 • Rod Length:129,75
Bore:79,00 • Stroke:81,50 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE159M79 79,00 Std. 28,20 -15 - 8,8:1 18 7900XX 273 1,M,R H1568SP2051S OPH5110BGWB4-A / R-OPE-002-I -
KE159M795 79,50 0,50 28,20 -15 - 8,8:1 18 7950XX 277 1,M,R H1568SP1051S OPH5110BGWB4-A / R-OPE-002-I -
KE159M80 80,00 1,00 28,20 -15 - 8,8:1 18 8000XX 291 1,M,R C4257-051 OPH5110BGWB4-A / R-OPE-002-I -
KE161M79 79,00 Std. 28,20 2,5 - 11,5:1 18 7900XX 291 1,M,R H1568SP2051S OPH5110BGWB4-A / R-OPE-002-I -
KE161M795 79,50 0,50 28,20 2,5 - 11,5:1 18 7950XX 295 1,M,R H1568SP1051S OPH5110BGWB4-A / R-OPE-002-I -
KE161M80 80,00 1,00 28,20 2,5 - 11,5:1 18 8000XX 309 1,M,R C4257-051 OPH5110BGWB4-A / R-OPE-002-I -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312426 79,00 Std. 28,20 3,2 - 11,5:1 18 XG7900 253 M,R H1568SP2051S OPH5110BGWB4-A / R-OPE-002-I -
312427 79,50 0,50 28,20 2,9 - 11,5:1 18 XG7950 258 M,R H1568SP1051S OPH5110BGWB4-A / R-OPE-002-I -
312428 80,00 1,00 28,20 2,5 - 11,5:1 18 XC8000 260 M,R C4257-051 OPH5110BGWB4-A / R-OPE-002-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 109-6002 -
KING - - -
144 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 145
