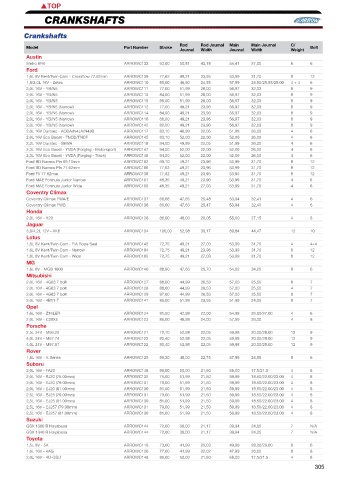

CONNECTING RODS CRANKSHAFTS

Connecting rods Crankshafts
Small- Rod Rod Journal Main Main Journal C/
Big-End Big-End Qty in Model Part Number Stroke Bolt
Model Part Number Length Pin End Bolt Size Journal Width Journal Width Weight
Bore Width Set
Width Austin
Triumph Metro 6R4 ARROWC133 93,00 50,81 43,18 54,41 27,00 6 6
2,5L 12V - TR6 ARROW160 146,05 13/16 51,34 22,76 22,76 5/16 UNF 6 Ford
VAG 1,6L 8V Kent/Twin Cam - Crossflow 77.62mm ARROWC139 77,62 49,21 23,95 53,99 31,70 8 12
1,8L 20V - AEB ARROW129 144,00 20,00 50,61 24,94 24,94 3/8 UNF 4 1,8/2,0L 16V - Zetec ARROWC110 88,00 46,90 24,55 57,99 24.90/25.55/28.00 4 + 4 6
1,8L 20V - AWM ARROW129 144,00 20,00 50,61 24,94 24,94 3/8 UNF 4 2,0L 16V - YB/N5 ARROWC111 77,00 51,99 26,00 56,97 32,03 8 9
2,0L 16V - ABF ARROW165 159,00 21,00 50,61 24,94 24,94 3/8 UNF 4 2,0L 16V - YB/N5 ARROWC113 84,00 51,99 26,00 56,97 32,03 8 9
2,0L 16V TFSI EA113 - AXX/BGB/BPJ/BPY/ ARROW202 144,00 21,00 50,61 24,89 21,90 3/8 UNF 4 2,0L 16V - YB/N5 ARROWC115 88,00 51,99 26,00 56,97 32,03 8 9
BWA 2,0L 16V - YB/N5 (Narrow) ARROWC112 77,00 49,21 23,96 56,97 32,03 8 9
2,0L 16V TFSI EA113 - AXX/BGB/BPJ/BPY/ ARROW207 144,00 20,00 50,61 24,89 21,90 3/8 UNF 4 2,0L 16V - YB/N5 (Narrow) ARROWC114 84,00 49,21 23,96 56,97 32,03 8 9
BWA
2,8L VR6 - AAA/ABV/AMV/AQP ARROW173 164,00 20,00 56,81 19,93 19,93 3/8 UNF 6 2,0L 16V - YB/N5 (Narrow) ARROWC116 88,00 49,21 23,96 56,97 32,03 8 9
2,2L 20V - 3B/RR/AAN/ABY/ADU ARROW129S5 144,00 20,00 50,61 24,94 24,94 3/8 UNF 5 2,0L 16V - YB/N5 (Narrow) ARROWC142 82,00 49,21 23,96 56,97 32,03 8 9
2,5L 20V - CEPA/CEPB/DAZA ARROW225 144,00 22,02 50,60 21,90 21,90 3/8 UNF 5 2,0L 16V Duratec - AODA/N4JA/N4JB ARROWC117 83,10 46,99 22,05 51,99 26,00 4 6
2.7L 30V - AGB/ASJ/AZR/AJK/ARE/AZA/AZB/ ARROW199 154,00 21,00 57,61 20,13 21,90 5/16 UNF 4 2,0L 16V Eco Boost - TNCD/TNCF ARROWC145 83,10 52,00 22,00 52,00 26,00 4 6
BES 2,3L 16V Duratec - SEWA ARROWC118 94,00 49,99 22,05 51,99 26,00 4 6
2,3L 16V Eco Boost - YVDA (Forging - Motorsport) ARROWC147 94,00 52,00 22,00 52,00 26,00 4 6
2,3L 16V Eco Boost - YVDA (Forging - Track) ARROWC146 94,00 52,00 22,00 52,00 26,00 4 6
Ford BD Narrow Pin 69.10mm ARROWC102 69,10 49,21 23,96 53,99 31,70 8 12
Ford BD Narrow Pin 77.62mm ARROWC106 77,62 49,21 23,96 53,99 31,70 8 12
Ford FV 77.62mm ARROWC138 77,62 49,21 23,95 53,94 31,70 8 12
Ford MAE Formula Junior Narrow ARROWC101 48,35 49,21 23,96 53,99 31,70 4 6
Ford MAE Formula Junior Wide ARROWC100 48,35 49,21 27,03 53,99 31,70 4 6
Coventry Climax
Coventry Climax FWA/E ARROWC137 66,68 47,65 25,48 53,94 32,41 4 6
Coventry Climax FWB ARROWC136 80,00 47,63 25,47 53,94 32,40 4 6
Honda
2,0L 16V - K20 ARROWC126 86,00 48,00 20,05 55,00 27,15 4 8
Jaguar
3,8/4,2L 12V - XK6 ARROWC134 106,00 52,98 30,17 69,84 44,47 12 10
Lotus
1,6L 8V Kent/Twin Cam - FIA Rope Seal ARROWC143 72,75 49,21 27,03 53,99 31,70 4 4+4
1,6L 8V Kent/Twin Cam - Narrow ARROWC104 72,75 49,21 23,96 53,99 31,70 8 12
1,6L 8V Kent/Twin Cam - Wide ARROWC105 72,75 49,21 27,03 53,99 31,70 8 12
MG
1,8L 8V - MGB 1800 ARROWC140 88,90 47,66 25,70 54,02 34,25 8 6
Mitsubishi
2,0L 16V - 4G63 7 bolt ARROWC127 88,00 44,99 26,53 57,00 25,50 8 7
2,0L 16V - 4G63 7 bolt ARROWC128 88,00 44,99 26,53 57,00 25,50 4 7
2,0L 16V - 4G63 7 bolt ARROWC129 97,00 44,99 26,53 57,00 25,50 8 7
2,0L 16V - 4B11-T ARROWC141 86,00 51,98 23,55 51,99 24,05 8 7
Opel
1,6L 16V - Z16LER ARROWC124 81,50 42,98 22,00 54,98 26.00/27.00 4 6
2,0L 16V - C20XE ARROWC123 86,00 48,98 24,00 57,99 26,00 4 8
Porsche
2,5L 24V - M96.20 ARROWC121 72,10 52,98 22,05 59,98 20.00/28.00 12 9
4,0L 24V - M97.74 ARROWC122 80,40 52,98 22,05 59,98 20.00/28.00 12 9
4,0L 24V - M97.81 ARROWC122 80,40 52,98 22,05 59,98 20.00/28.00 12 9
Rover
1,8L 16V - K Series ARROWC125 89,30 48,00 22,75 47,98 24,58 8 6
Subaru
2,0L 16V - FA20 ARROWC148 86,00 50,00 21,60 68,00 17.5/21.5 4 8
2,0L 16V - EJ20 (75.00mm) ARROWC132 75,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
2,0L 16V - EJ20 (79.00mm) ARROWC131 79,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
2,0L 16V - EJ20 (81.00mm) ARROWC130 81,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
2,5L 16V - EJ25 (79.00mm) ARROWC131 79,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
2,5L 16V - EJ25 (81.00mm) ARROWC130 81,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
2,5L 16V - EJ257 (79.00mm) ARROWC131 79,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
2,5L 16V - EJ257 (81.00mm) ARROWC130 81,00 51,99 21,50 59,99 18.50/22.00/23.00 4 8
Suzuki
GSX 1300 R Hayabusa ARROWC144 72,00 38,00 21,17 39,94 24,05 7 N/A
GSX 1340 R Hayabusa ARROWC144 72,00 38,00 21,17 39,94 24,05 7 N/A
Toyota
1,5L 8V - 5K ARROWC119 73,00 41,99 25,03 49,99 28.00/29.00 8 6
1,6L 16V - 4AG ARROWC120 77,00 41,99 22,02 47,99 26,00 8 8
2,0L 16V - 4U-GSU ARROWC148 86,00 50,00 21,60 68,00 17.5/21.5 4 8
