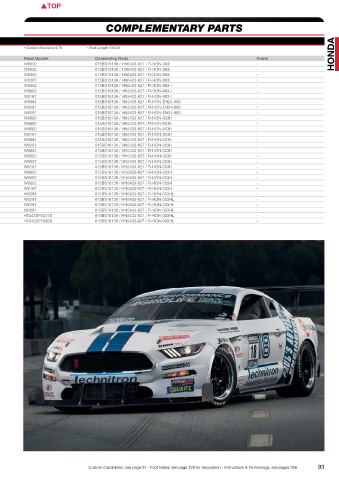

Honda PISTONS COMPLEMENTARY PARTS
B18C1 V-TEC as in Integra
OEM Engine details 1,8 Ltr 16V Engine code:B18C1 • Displacement:1797 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:41,50 • Gasket thickness:0,75 • Rod Length:138,00
Bore:81,00 • Stroke:87,20 • Block Ht:212,00 HONDA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K541M81AP 81,00 Std. 30,00 -12 0,40- 8,6:1 21 8100XX 295 1 W6602 015BS16138 / HN5433-827 / R-HON-003I -
K541M8125AP 81,25 0,25 30,00 -12 0,40- 8,6:1 21 8125XX 296 1,M W6602 015BS16138 / HN5433-827 / R-HON-003I -
K541M815AP 81,50 0,50 30,00 -12 0,40- 8,6:1 21 8150XX 301 1 W6602 015BS16138 / HN5433-827 / R-HON-003I -
K541M82AP 82,00 1,00 30,00 -12 0,40- 8,6:1 21 8200XX 306 1 W6167 015BS16138 / HN5433-827 / R-HON-003I -
K673M81AP 81,00 Std. 30,00 -8 0,40- 9,1:1 21 8100XX 293 1,M W6602 015BS16138 / HN5433-827 / R-HON-003-I -
K673M815AP 81,50 0,50 30,00 -8 0,40- 9,1:1 21 8150XX 298 1,M W6602 015BS16138 / HN5433-827 / R-HON-003-I -
K673M82AP 82,00 1,00 30,00 -8 0,40- 9,1:1 21 8200XX 303 1,M W6167 015BS16138 / HN5433-827 / R-HON-003-I -
K649M84 84,00 3,00 30,00 -10 0,40- 9,3:1 21 8400XX 320 1,N W6084 015BS16138 / HN5433-827 / R-HON-EN24-003 -
K649M845 84,50 3,50 30,00 -10 0,40- 9,4:1 21 8450XX 326 1,N W6291 015BS16138 / HN5433-827 / R-HON-EN24-003 -
K649M85 85,00 4,00 30,00 -10 0,40- 9,5:1 21 8500XX 332 1,M,N W6291 015BS16138 / HN5433-827 / R-HON-EN24-003 -
K542M81AP 81,00 Std. 29,85 -2,4FT 0,55- 10,0:1 21 8100XX 280 1,F W6602 015BS16138 / HN5433-827 / R-HON-003H -
K542M8125AP 81,25 0,25 29,85 -2,4FT 0,55- 10,0:1 21 8125XX 281 1,F,M W6602 015BS16138 / HN5433-827 / R-HON-003H -
K542M815AP 81,50 0,50 29,85 -2,4FT 0,55- 10,0:1 21 8150XX 285 1,F W6602 015BS16138 / HN5433-827 / R-HON-003H -
K542M82AP 82,00 1,00 29,85 -2,4FT 0,55- 10,0:1 21 8200XX 296 1,F W6167 015BS16138 / HN5433-827 / R-HON-003H -
K623M84 84,00 3,00 30,00 -2,3FT 0,40- 10,6:1 21 8400XX 291 1,N W6084 015BS16138 / HN5433-827 / R-HON-003H -
K623M845 84,50 3,50 30,00 -2,3FT 0,40- 10,7:1 21 8450XX 296 1,N W6291 015BS16138 / HN5433-827 / R-HON-003H -
K566M81AP 81,00 Std. 30,10 5 0,30- 11,8:1 21 8100XX 275 1 W6602 015BS16138 / HN5433-827 / R-HON-003H -
K566M8125AP 81,25 0,25 30,10 5 0,30- 11,8:1 21 8125XX 279 1,M W6602 015BS16138 / HN5433-827 / R-HON-003H -
K566M815AP 81,50 0,50 30,10 5 0,30- 11,8:1 21 8150XX 281 1 W6602 015BS16138 / HN5433-827 / R-HON-003H -
K566M82AP 82,00 1,00 30,10 5 0,30- 11,8:1 21 8200XX 287 1 W6167 015BS16138 / HN5433-827 / R-HON-003H -
K593M81AP 81,00 Std. 30,00 8,3 0,40- 12,5:1 21 8100XX 270 1 W6602 015BS16138 / HN5433-827 / R-HON-003H -
K593M8125AP 81,25 0,25 30,00 8,3 0,40- 12,5:1 21 8125XX 274 1,M W6602 015BS16138 / HN5433-827 / R-HON-003H -
K593M815AP 81,50 0,50 30,00 8,3 0,40- 12,5:1 21 8150XX 278 1 W6602 015BS16138 / HN5433-827 / R-HON-003H -
K593M82AP 82,00 1,00 30,00 8,3 0,40- 12,5:1 21 8200XX 281 1 W6167 015BS16138 / HN5433-827 / R-HON-003H -
K594M84AP 84,00 3,00 30,00 8,3 0,40- 13,1:1 21 8400XX 275 1,N W6084 015BS16138 / HN5433-827 / R-HON-003HL -
K594M8425AP 84,25 3,25 30,00 8,3 0,40- 13,2:1 21 8425XX 277 1,M,N W6291 015BS16138 / HN5433-827 / R-HON-003HL -
K594M845AP 84,50 3,50 30,00 8,3 0,40- 13,2:1 21 8450XX 279 1,N W6291 015BS16138 / HN5433-827 / R-HON-003HL -
K594M85AP 85,00 4,00 30,00 8,3 0,40- 13,4:1 21 8500XX 286 1,N W6291 015BS16138 / HN5433-827 / R-HON-003HL -
K594M855AP 85,50 4,50 30,00 8,3 0,40- 13,5:1 21 8550XX 292 1,N H1342SP2027S 015BS16138 / HN5433-827 / R-HON-003HL -
K594M86AP 86,00 5,00 30,00 8,3 0,40- 13,6:1 21 8600XX 297 1,N H1342SP1030S 015BS16138 / HN5433-827 / R-HON-003HL -
92 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 93
