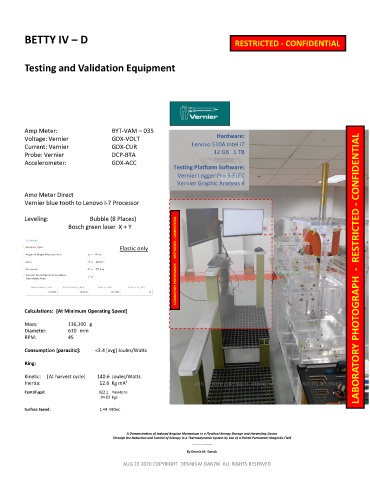

Page 23 - 2020SEP30 Brief Booklet C

BETTY IV – D RESTRICTED - CONFIDENTIAL

Testing and Validation Equipment

Amp Meter: BYT-VAM – 035
Voltage: Vernier GDX-VOLT Hardware:
Current: Vernier GDX-CUR Lenovo 510A Intel i7
Probe: Vernier DCP-BTA 12 GB 1 TB
Accelerometer: GDX-ACC
Testing Platform Software: CONFIDENTIAL
Vernier Logger Pro 3-ELEC
Vernier Graphic Analysis 4
Amo Meter Direct AUG 22 2020 COPYRIGHT DENNIS M DANZIK ALL RIGHTS RESERVED
Vernier blue tooth to Lenovo I-7 Processor

Leveling: Bubble (8 Places)
RESTRICTED - CONFIDENTIAL RESTRICTED -
Bosch green laser X + Y

Elastic only

LABORATORY PHOTOGRAPH -

Calculations: [At Minimum Operating Speed]

Mass: 136,100 g
Diameter: 610 mm
RPM: 45 LABORATORY PHOTOGRAPH -
Consumption [parasitic]: <3.4 [avg] Joules/Watts

Ring:

Kinetic: [At harvest cycle] 140.6 Joules/Watts
Inertia: 12.6 Kg mA 2 AUG 22 2020 COPYRIGHT DENNIS M DANZIK ALL RIGHTS RESERVED
Centrifugal: 922.1 Newtons
94.03 kgs

Surface Speed: 1.44 M/Sec

A Demonstration of Induced Angular Momentum in a Flywheel Energy Storage and Harvesting Device
Through the Reduction and Control of Entropy in a Thermodynamic System by Use of a Paired Permanent Magnetic Field
Copyright 2020 Dennis M. Danzik All Rights Reserved
By Dennis M. Danzik
