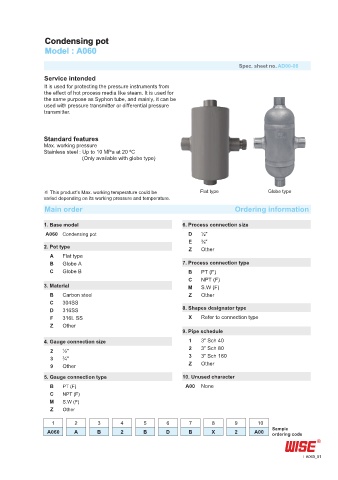

Condensing pot
Model : A060

Spec. sheet no. AD00-06
Service intended
It is used for protecting the pressure instruments from
the effect of hot process media like steam. It is used for
the same purpose as Syphon tube, and mainly, it can be
used with pressure transmitter or differential pressure
transmitter.

Standard features
Max. working pressure
Stainless steel : Up to 10 MPa at 20 ºC
(Only available with globe type)

œ This product’s Max. working temperature could be Flat type Globe type
varied depending on its working pressure and temperature.
Main order Ordering information

1. Base model 6. Process connection size
A060 Condensing pot D ½"
E ¾"
2. Pot type
Z Other
A Flat type
B Globe A 7. Process connection type
C Globe B B PT (F)
C NPT (F)
3. Material M S.W (F)
B Carbon steel Z Other
C 304SS
D 316SS 8. Shapes designator type
F 316L SS X Refer to connection type
Z Other
9. Pipe schedule
4. Gauge connection size 1 3" Sch 40
2 ½" 2 3" Sch 80
3 ¾" 3 3" Sch 160
9 Other Z Other
5. Gauge connection type 10. Unused character
B PT (F) A00 None
C NPT (F)
M S.W (F)
Z Other

1 2 3 4 5 6 7 8 9 10
Sample
A060 A B 2 B D B X 2 A00 ordering code

A060_01
