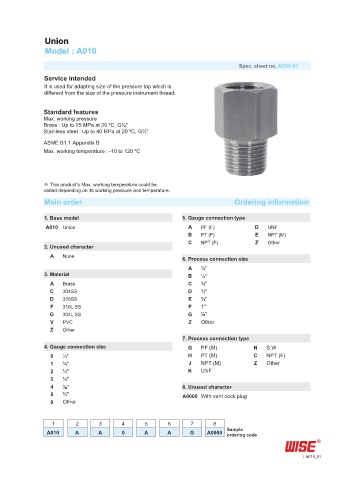

Union
               Model : A010

                                                                           Spec. sheet no. AD00-01
               Service intended
               It is used for adapting size of the pressure tap which is
               different from the size of the pressure instrument thread.


               Standard features
               Max. working pressure
               Brass : Up to 25 MPa at 20 ºC, G½"
               Stainless steel : Up to 40 MPa at 20 ºC, G½"
               ASME B1.1 Appendix B
               Max. working temperature : -10 to 120 ºC





               œ This product’s Max. working temperature could be
               varied depending on its working pressure and temperature.
               Main order                                                 Ordering information


               1. Base model                              5. Gauge connection type
               A010  Union                                 A   PF (F)           D   UNF
                                                           B   PT (F)           E   NPT (M)
                                                           C   NPT (F)          Z   Other
               2. Unused character
                 A   None                                 6. Process connection size
                                                           A   ⅛"
               3. Material                                 B   ¼"
                 A   Brass                                 C   ⅜"
                 C   304SS                                 D   ½"
                 D   316SS                                 E   ¾"
                 F   316L SS                                F  1"
                 G   304L SS                               G   7 16 "
                 V   PVC                                    Z  Other
                 Z   Other
                                                          7. Process connection type
               4. Gauge connection size                    G   PF (M)           N   S.W
                 0   ¼"                                    H   PT (M)           C   NPT (F)
                 1   ⅜"                                     J  NPT (M)          Z   Other
                 2   ½"                                    K   UNF
                 3   ⅛"
                 4   7 16 "                               8. Unused character
                 5   ¾"                                   A0000  With vent cock plug
                 9   Other


                 1       2      3      4      5      6      7      8
                                                                       Sample
                A010    A       A      0      A      A      G    A0000  ordering code



                                                                                                A010_01
   1   2   3   4   5   6   7   8
