001

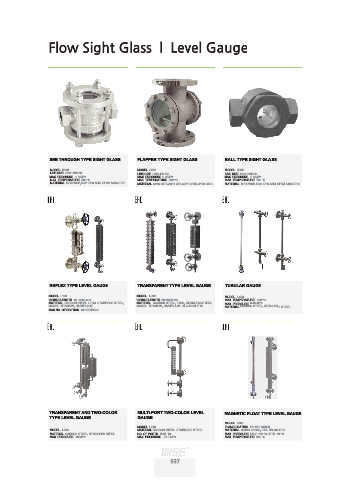

Flow Sight Glass l Level Gauge

SEE THROUGH TYPE SIGHT GLASS FLAPPER TYPE SIGHT GLASS BALL TYPE SIGHT GLASS
MODEL S100 MODEL S200 MODEL S300
LINE SIZE DN8~DN150 LINE SIZE DN8~DN150 LINE SIZE DN8~DN150
MAX. PRESSURE 2.9 MPa MAX. PRESSURE 2.9 MPa MAX. PRESSURE 2.9 MPa
MAX. TEMPERATURE 300 ºC MAX. TEMPERATURE 300 ºC MAX. TEMPERATURE 100 ºC
MATERIAL A216 WCB,A351 CF8,A351 CF8M,A106 GR.B MATERIAL A216 WCB,A351 CF8,A351 CF8M,A106 GR.B MATERIAL A216 WCB,A351 CF8,A351 CF8M,A106 GR.B

REFLEX TYPE LEVEL GAUGE TRANSPARENT TYPE LEVEL GAUGE TUBULAR GAUGE
MODEL L100 MODEL L200 MODEL L400
VISIBLE LENGTH 90~3695 mm VISIBLE LENGTH 90~3695 mm MAX. TEMPERATURE 120 ºC
MATERIAL CARBON STEEL, LTCS, STAINLESS STEEL, MATERIAL CARBON STEEL, LTCS, STAINLESS STEEL, MAX. PRESSURE 0.45 MPa
MONEL, TITANIUM, HASTELLOY MONEL, TITANIUM, HASTELLOY, ALLOY-20, ETC MATERIAL CARBON STEEL, STAINLESS STEEL
MAX.NO. OF SECTION 10 SECTIONS

TRANSPARENT AND TWO-COLOR MULTI-PORT TWO-COLOR LEVEL MAGNETIC FLOAT TYPE LEVEL GAUGE
TYPE LEVEL GAUGE GAUGE
MODEL L300
MODEL L510 FLANGE RATING DN150~DN900
MODEL L500 MATERIAL CARBON STEEL, STAINLESS STEEL MATERIAL 304SS, 316SS, 316L SS and ETC
MATERIAL CARBON STEEL, STAINLESS STEEL NO. OF PORTS MAX. 10 MAX. PRESSURE MAX. 160 ºC / STD. 60 ºC
MAX. PRESSURE 10 MPa MAX. PRESSURE 21.5 MPa MAX. TEMPERATURE 350 ºC

037
