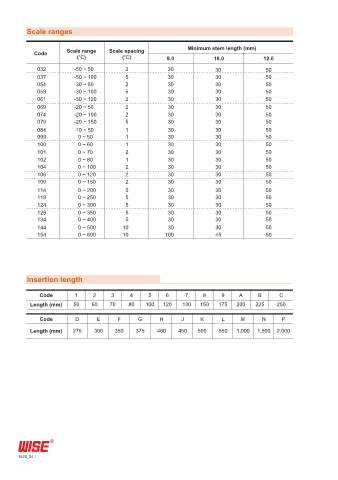

Scale ranges

Code Scale range Scale spacing Minimum stem length (mm)
(℃) (℃) 8.0 10.0 12.0
032 -50 ~ 50 2 30 30 50
037 -50 ~ 100 5 30 30 50
054 -30 ~ 50 2 30 30 50
059 -30 ~ 100 5 30 30 50
061 -30 ~ 120 2 30 30 50
069 -20 ~ 50 2 30 30 50
074 -20 ~ 100 2 30 30 50
079 -20 ~ 150 5 30 30 50
084 -10 ~ 50 1 30 30 50
099 0 ~ 50 1 30 30 50
100 0 ~ 60 1 30 30 50
101 0 ~ 70 2 30 30 50
102 0 ~ 80 1 30 30 50
104 0 ~ 100 2 30 30 50
106 0 ~ 120 2 30 30 50
109 0 ~ 150 2 30 30 50
114 0 ~ 200 5 30 30 50
119 0 ~ 250 5 30 30 50
124 0 ~ 300 5 30 30 50
129 0 ~ 350 5 30 30 50
134 0 ~ 400 5 30 30 50
144 0 ~ 500 10 30 30 50
154 0 ~ 600 10 100 45 50

Insertion length

Code 1 2 3 4 5 6 7 8 9 A B C
Length (mm) 50 60 70 80 100 120 130 150 175 200 225 250

Code D E F G H J K L M N P
Length (mm) 275 300 350 375 400 450 500 550 1,000 1,500 2,000

T400_04
