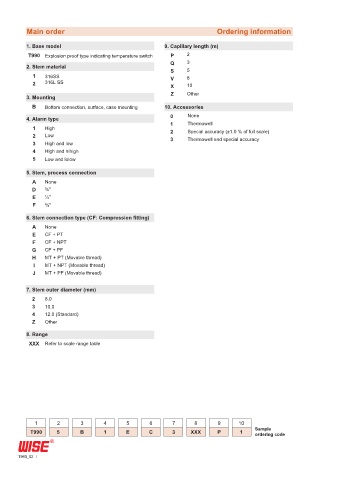

Main order Ordering information

1. Base model 9. Capillary length (m)
T990 Explosion proof type indicating temperature switch P 2
Q 3
2. Stem material
S 5
1 316SS V 8
2 316L SS X 10
Z Other
3. Mounting
B Bottom connection, surface, case mounting 10. Accessories
4. Alarm type 0 None
1 Thermowell
1 High 2 Special accuracy (±1.0 % of full scale)
2 Low 3 Thermowell and special accuracy
3 High and low
4 High and hihigh
5 Low and lolow

5. Stem, process connection
A None
D ⅜"
E ½"
F ¾"
6. Stem connection type (CF: Compression fitting)
A None
E CF + PT
F CF + NPT
G CF + PF
H MT + PT (Movable thread)
I MT + NPT (Movable thread)
J MT + PF (Movable thread)

7. Stem outer diameter (mm)
2 8.0
3 10.0
4 12.0 (Standard)
Z Other
8. Range
XXX Refer to scale range table

1 2 3 4 5 6 7 8 9 10
Sample
T990 5 B 1 E C 3 XXX P 1 ordering code

T990_02
