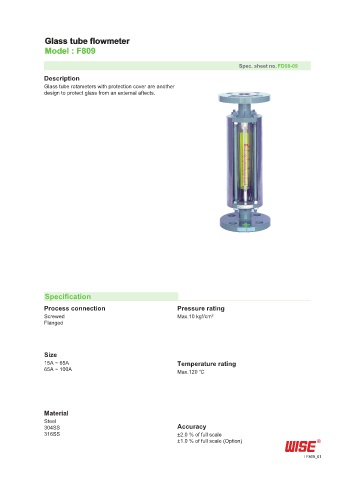

P. 93
Glass tube flowmeter
Model : F809
Spec. sheet no. FD08-09
Description
Glass tube rotameters with protection cover are another
design to protect glass from an external aftects.
Specification
Process connection Pressure rating
Screwed Max.10 kgf/cm²
Flanged
Size
15A ~ 65A Temperature rating
65A ~ 100A Max.120 ℃
Material
Steel
304SS Accuracy
316SS ±2.0 % of full scale
±1.0 % of full scale (Option)
F809_01
