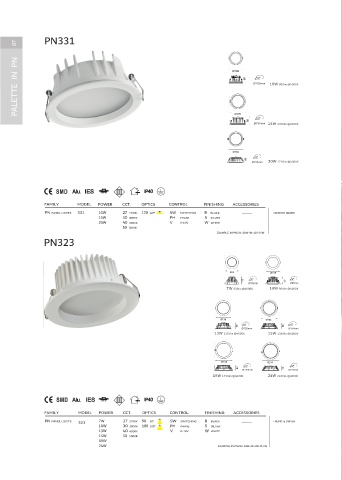

Page 108 - CATALOGUE (32)

87 PN331

PALETTE IN PN Ø108 68 Ø100mm 10W 900lm @4000K

Ø135
68
Ø125mm 15W 1350lm @4000K

Ø163
68
Ø155mm 20W 1710lm @4000K

Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
PN PANEL LIGHTS 331 10W 27 2700K 120 120° SW SWITCHING B BLACK • REMOTE DRIVER
15W 30 3000K PH PHASE S SILVER
20W 40 4000K V 0-10V W WHITE
50 5000K
EXAMPLE: IN-PN331-20W-30-120-D-W
PN323

Ø90 Ø108
53
Ø75mm 56 Ø90mm
7W 630lm @4000K 10W 900lm @4000K

Ø138 Ø165
59
Ø125mm 58 Ø150mm
13W 1170lm @4000K 15W 1350lm @4000K

Ø190 Ø230
Ø170mm 66 Ø210mm
58
19W 1710lm @4000K 24W 2160lm @4000K

Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
PN PANEL LIGHTS 7W 27 2700K 90 90° SW SWITCHING B BLACK • REMOTE DRIVER
323
10W 30 3000K 100 100° PH PHASE S SILVER
13W 40 4000K V 0-10V W WHITE
15W 50 5000K
19W
24W EXAMPLE: IN-PN323-10W-30-100-PH-W
