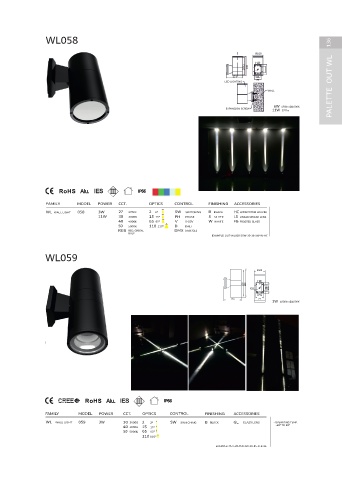

135 WL055 WL058 136

Ø108
PALETTE OUT WL 162.6 113.3 223.2 Ø4.5 Ø11.0 34.7 11W 493lm @4000K LED LIGHTING 44 WALL 11W 877lm PALETTE OUT WL
135.6
2-Ø6
189.5
208
271.1
173
77
89.9
18W 877lm
6W 493lm @4000K
EXPANSION SCREW

Ⅲ IP66 Ⅲ IP66
CONTROL

FAMILY MODEL POWER CCT. OPTICS FINISHING ACCESSORIES FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
WL WALL LIGHT 055 11W 30 3000K 2 2° SW SWITCHING B BLACK MB MOUNTING • OPERATING TEMP. WL WALL LIGHT 058 3W 27 2700K 2 2° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE
18W 40 4000K PH PHASE W WHITE BRACKET -40° TO 50° 11W 30 3000K 15 15° PH PHASE S SILVER LS LINEAR SPREAD LENS
50 5000K V 0-10V 40 4000K 65 65° V 0-10V W WHITE FG FROSTED GLASS
D DALI 50 5000K 110 110° D DALI
RGB RED, GREEN, DMX DMX 512
EXAMPLE: OUT-WL055-18W-30-2-D-B-MB BLUE EXAMPLE: OUT-WL058-30W-30-38-SW-W-HC
WL057

WL059
86mm
38mm
Ø108
2-Ø6
259 285
86mm
1W 70lm @4000K Ø10 73 106
44
173 77
146mm 3W 1000lm @4000K
38mm
86mm
2W 140lm @4000K

206mm
38mm

86mm
3W 210lm @4000K

Ⅲ IP65 Ⅲ IP66

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
WL WALL LIGHT 057 1W 22 2200K 60 60° SW SWITCHING B BLACK N/A • DIMMING ON REQUEST WL WALL LIGHT 059 3W 30 3000K 2 2° SW SWITCHING B BLACK GL GLASS LENS • OPERATING TEMP.
2W 30 3000K DMX DMX 512 S SILVER 40 4000K 15 15° -40° TO 50°
3W 40 4000K W WHITE 50 5000K 65 65°
50 5000K 110 110°
RGB RED, GREEN,
BLUE
EXAMPLE: OUT-WL057-3W-W-15-W EXAMPLE: OUT-WL059-3W-30-15-D-B-GL
