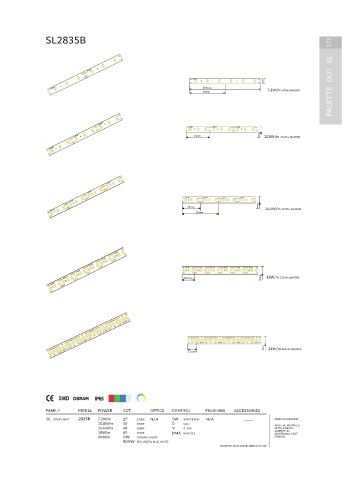

SL2835B 172

PALETTE OUT SL

SL2835B SL2835B SL2835B SL2835B SL2835B
P172 P172 P172 P172 P172
8mm
STRIPLIGHT
100mm
50mm 7.2W/m 905lm @4000K

SL2836B SL2836B SL2836B SL2836B SL2835C
P173 P173 P173 P173 P174

8mm
33mm 10.8W/m 1343lm @4000K

SL2835C SL2835C SL2835C SL2835C SL2836C
P174 P174 P174 P174 P175

SL2836C SL2836C SL2836C
P175 P175 P175
8mm
25mm 14.4W/m 1772lm @4000K
50mm

16.7mm 8mm 18W/m 2110lm @4000K

8mm 24W/m 2814lm @4000K
12.5mm

OUTDOOR IP65

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES

SL STRIPLIGHT 2835B 7.2W/m 27 2700K N/A SW SWITCHING N/A • CRI90 ON REQUEST
10.8W/m 30 3000K D DALI
• MUST BE MOUNTED
14.4W/m 40 4000K V 0-10V ONTO A METAL
18W/m 65 6500K DMX DMX 512 SURFACE AS
ADDITIONAL HEAT-
24W/m DW DYNAMIC WHITE SINKING
RGBW RED, GREEN, BLUE, WHITE
EXAMPLE: IN-SL2835B-18W/m-27-SW
