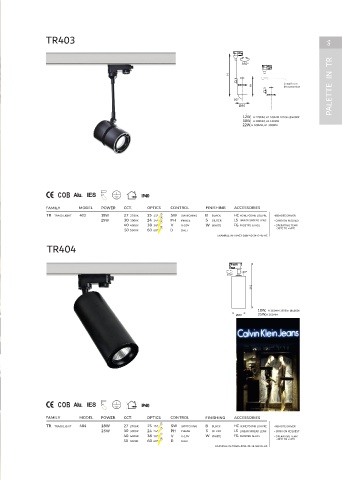

Page 65 - CATALOGUE (32)

TR403 44

PALETTE IN TR
350°

H
H1 Length can
be customize
90°
Ø80

12W, H 278MM, H1 108MM 1020lm @4000K
18W, H 298MM, H1 128MM
22W,H 308MM, H1 308MM

COB IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
TR TRACKLIGHT 403 18W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
25W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
40 4000K 38 38° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
50 5000K 60 60° D DALI -30°C TO +40°C
EXAMPLE: IN-TR403-18W-40-24-D-W-HC

TR404

90°
350°

262

18W, H 262MM 1585lm @4000K
Ø80 25W,H 262MM

COB IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
TR TRACKLIGHT 404 18W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
25W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
40 4000K 38 38° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
-30°C TO +40°C
50 5000K 60 60° D DALI
EXAMPLE: IN-TR404-25W-30-15-SW-W-HC
