Page 86 - CATALOGUE (32)
P. 86
ST591 66
SQ60

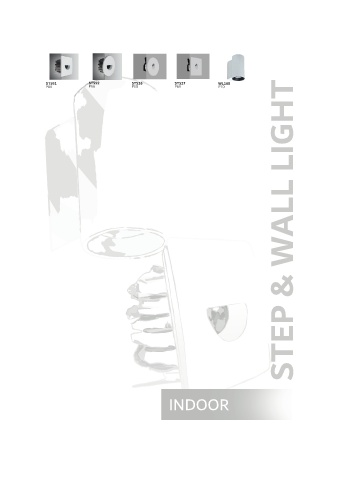

STEP & WALL LIGHT
ST591 ST592 ST526 ST527 WL168
P66 P66 P68 P69 P70 PALETTE OUT ST
35
SQ50MM 3W 258lm @4000K
Ⅲ IP40
FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
ST STEPLIGHT 591 3W 27 2700K 17 17° SW SWITCHING B BLACK • REMOTE DRIVER
30 3000K 26 26° PH PHASE S SILVER • CRI90 ON REQUEST
40 4000K V 0-10V WWHITE • OPERATING TEMP.
50 5000K D DALI -30°C TO +40°C
EXAMPLE: IN-ST591-3W-30-17-PH-W
ST592
Ø60
35
Ø50mm 3W 258lm @4000K
INDOOR Ⅲ IP40
FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
ST STEPLIGHT 592 3W 27 2700K 17 17° SW SWITCHING B BLACK • REMOTE DRIVER
30 3000K 26 26° PH PHASE S SILVER • CRI90 ON REQUEST
40 4000K V 0-10V WWHITE • OPERATING TEMP.
-30°C TO +40°C
50 5000K D DALI
EXAMPLE: IN-ST592-3W-40-17-PH-W
