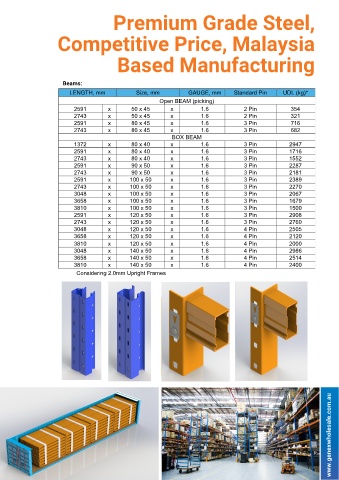

Page 3 - Genex 76.2 mm Racking

Premium Grade Steel,

Competitive Price, Malaysia

Based Manufacturing

Beams:

LENGTH, mm Size, mm GAUGE, mm Standard Pin UDL (kg)*
Open BEAM (picking)
2591 x 50 x 45 x 1.6 2 Pin 354
2743 x 50 x 45 x 1.6 2 Pin 321
2591 x 80 x 45 x 1.6 3 Pin 716
2743 x 80 x 45 x 1.6 3 Pin 682
BOX BEAM
1372 x 80 x 40 x 1.6 3 Pin 2947
2591 x 80 x 40 x 1.6 3 Pin 1716
2743 x 80 x 40 x 1.6 3 Pin 1552
2591 x 90 x 50 x 1.6 3 Pin 2287
2743 x 90 x 50 x 1.6 3 Pin 2181
2591 x 100 x 50 x 1.6 3 Pin 2389
2743 x 100 x 50 x 1.6 3 Pin 2270
3048 x 100 x 50 x 1.6 3 Pin 2067
3658 x 100 x 50 x 1.6 3 Pin 1679
3810 x 100 x 50 x 1.6 3 Pin 1500
2591 x 120 x 50 x 1.6 3 Pin 2908
2743 x 120 x 50 x 1.6 3 Pin 2760
3048 x 120 x 50 x 1.6 4 Pin 2505
3658 x 120 x 50 x 1.6 4 Pin 2120
3810 x 120 x 50 x 1.6 4 Pin 2000
3048 x 140 x 50 x 1.6 4 Pin 2986
3658 x 140 x 50 x 1.6 4 Pin 2514
3810 x 140 x 50 x 1.6 4 Pin 2400
Considering 2.0mm Upright Frames
