Page 19 - Delco Sales Maintenance Guide 2022
P. 19

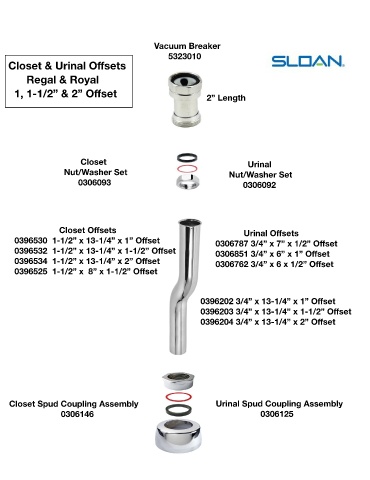

Vacuum Breaker
5323010
Closet & Urinal Offsets
Regal & Royal
1, 1-1/2” & 2” Offset 2” Length
Closet Urinal
Nut/Washer Set Nut/Washer Set
0306093 0306092
Closet Offsets Urinal Offsets
0396530 1-1/2” x 13-1/4” x 1” Offset 0306787 3/4” x 7” x 1/2” Offset
0396532 1-1/2” x 13-1/4” x 1-1/2” Offset 0306851 3/4” x 6” x 1” Offset
0396534 1-1/2” x 13-1/4” x 2” Offset 0306762 3/4” x 6 x 1/2” Offset
0396525 1-1/2” x 8” x 1-1/2” Offset
0396202 3/4” x 13-1/4” x 1” Offset
0396203 3/4” x 13-1/4” x 1-1/2” Offset
0396204 3/4” x 13-1/4” x 2” Offset
Closet Spud Coupling Assembly Urinal Spud Coupling Assembly
0306146 0306125
