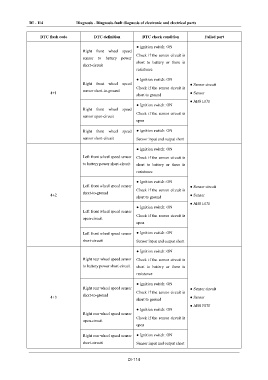

Page 168 - Foton Workshop Manual - Auman EST-M
P. 168
DI - 114 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts
DTC flash code DTC definition DTC check condition Failed part
● Ignition switch: ON
Right front wheel speed
Check if the sensor circuit is
sensor to battery power
short to battery or there is
short-circuit
resistance
● Ignition switch: ON
Right front wheel speed ● Sensor circuit
Check if the sensor circuit is
sensor short-to-ground
4+1 ● Sensor
short to ground
● ABS ECU
● Ignition switch: ON
Right front wheel speed
Check if the sensor circuit is
sensor open-circuit
open
Right front wheel speed ● Ignition switch: ON
sensor short-circuit Sensor input and output short
● Ignition switch: ON
Left front wheel speed sensor Check if the sensor circuit is
to battery power short-circuit short to battery or there is
resistance
● Ignition switch: ON
Left front wheel speed sensor ● Sensor circuit
Check if the sensor circuit is
short-to-ground
4+2 ● Sensor
short to ground
● ABS ECU
● Ignition switch: ON
Left front wheel speed sensor
Check if the sensor circuit is
open-circuit
open
Left front wheel speed sensor ● Ignition switch: ON
short-circuit Sensor input and output short
● Ignition switch: ON
Right rear wheel speed sensor Check if the sensor circuit is
to battery power short-circuit short to battery or there is
resistance
● Ignition switch: ON
Right rear wheel speed sensor ● Sensor circuit
Check if the sensor circuit is
short-to-ground
4+3 ● Sensor
short to ground
● ABS ECU
● Ignition switch: ON
Right rear wheel speed sensor
Check if the sensor circuit is
open-circuit
open
Right rear wheel speed sensor ● Ignition switch: ON
short-circuit Sensor input and output short
DI-114
