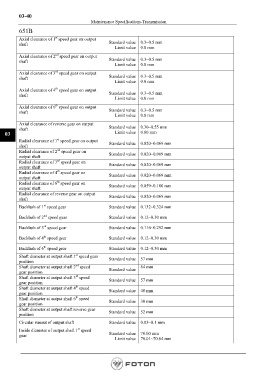

03-40
Maintenance Specifications-Transmission

651B
st
Axial clearance of 1 speed gear on output
shaft Standard value 0.3~0.5 mm
Limit value 0.8 mm
nd
Axial clearance of 2 speed gear on output
shaft Standard value 0.3~0.5 mm
Limit value 0.8 mm
rd
Axial clearance of 3 speed gear on output
shaft Standard value 0.3~0.5 mm
Limit value 0.8 mm
th
Axial clearance of 4 speed gear on output
shaft Standard value 0.3~0.5 mm
Limit value 0.8 mm
th
Axial clearance of 6 speed gear on output
shaft Standard value 0.3~0.5 mm
Limit value 0.8 mm
Axial clearance of reverse gear on output
shaft Standard value 0.30~0.55 mm
03 Limit value 0.80 mm
st
Radial clearance of 1 speed gear on output Standard value 0.020~0.069 mm
shaft
nd
Radial clearance of 2 speed gear on
output shaft Standard value 0.020~0.069 mm
rd
Radial clearance of 3 speed gear on Standard value 0.020~0.069 mm
output shaft
th
Radial clearance of 4 speed gear on Standard value 0.020~0.069 mm
output shaft
th
Radial clearance of 6 speed gear on Standard value 0.059~0.100 mm
output shaft
Radial clearance of reverse gear on output Standard value 0.020~0.069 mm
shaft
st
Backlash of 1 speed gear Standard value 0.132~0.324 mm
nd
Backlash of 2 speed gear Standard value 0.12~0.30 mm
rd
Backlash of 3 speed gear Standard value 0.116~0.292 mm
th
Backlash of 4 speed gear Standard value 0.12~0.30 mm
th
Backlash of 6 speed gear Standard value 0.12~0.30 mm
st
Shaft diameter at output shaft 1 speed gear Standard value 57 mm
position
nd
Shaft diameter at output shaft 2 speed Standard value 64 mm
gear position
rd
Shaft diameter at output shaft 3 speed Standard value 57 mm
gear position
th
Shaft diameter at output shaft 4 speed Standard value 40 mm
gear position
th
Shaft diameter at output shaft 6 speed Standard value 30 mm
gear position
Shaft diameter at output shaft reverse gear Standard value 52 mm
position

Circular runout of output shaft Standard value 0.03~0.1 mm
st
Inside diameter of output shaft 1 speed
gear Standard value 70.00 mm
Limit value 70.01~70.04 mm
