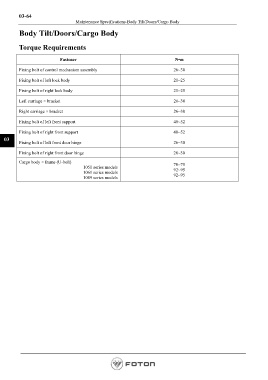

Page 138 - Workshop Manual - Aumark (BJ1051)
P. 138
03-64
Maintenance Specifications-Body Tilt/Doors/Cargo Body
Body Tilt/Doors/Cargo Body
Torque Requirements
Fastener N•m
Fixing bolt of control mechanism assembly 26~30
Fixing bolt of left lock body 21~25
Fixing bolt of right lock body 21~25
Left carriage × bracket 26~30
Right carriage × bracket 26~30
Fixing bolt of left front support 48~52
Fixing bolt of right front support 48~52
03
Fixing bolt of left front door hinge 26~30
Fixing bolt of right front door hinge 26~30
Cargo body × frame (U-bolt) 70~75
1051 series models 92~95
1061 series models 92~95
1089 series models
