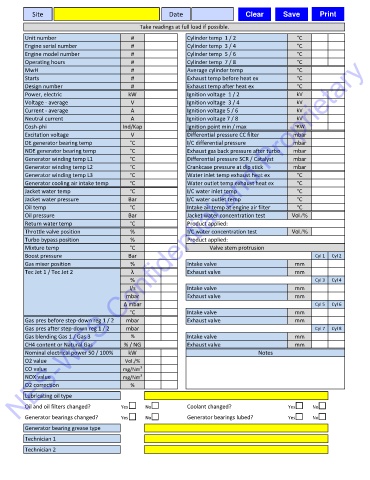

Take readings at full load if possible. Clear Save Print
Unit number # Cylinder temp 1 / 2 °C
Engine serial number # Cylinder temp 3 / 4 °C
Engine model number # Cylinder temp 5 / 6 °C
NES-WES Confidential and Proprietary
Operating hours # Cylinder temp 7 / 8 °C
MwH # Average cylinder temp °C
Starts # Exhaust temp before heat ex °C
Design number # Exhaust temp after heat ex °C
Power, electric kW Ignition voltage 1 / 2 kV
Voltage - average V Ignition voltage 3 / 4 kV
Current - average A Ignition voltage 5 / 6 kV
Neutral current A Ignition voltage 7 / 8 kV
Cosh-phi Ind/Kap Ignition point min / max °KW
Excitation voltage V Differential pressure CC filter mbar
DE generator bearing temp °C I/C differential pressure mbar
NDE generator bearing temp °C Exhaust gas back pressure after turbo mbar
Generator winding temp L1 °C Differential pressure SCR / Catalyst mbar
Generator winding temp L2 °C Crankcase pressure at dip stick mbar
Generator winding temp L3 °C Water inlet temp exhaust heat ex °C
Generator cooling air intake temp °C Water outlet temp exhaust heat ex °C
Jacket water temp °C I/C water inlet temp °C
Jacket water pressure Bar I/C water outlet temp °C
Oil temp °C Intake air temp at engine air filter °C
Oil pressure Bar Jacket water concentration test Vol./%
Return water temp °C Product applied:
Throttle valve position % I/C water concentration test Vol./%
Turbo bypass position % Product applied:
Mixture temp °C Valve stem protrusion
Boost pressure Bar Cyl 1 Cyl 2
Gas mixer position % Intake valve mm
Tec Jet 1 / Tec Jet 2 λ Exhaust valve mm
% Cyl 3 Cyl 4
l/s Intake valve mm
mbar Exhaust valve mm
Δ mbar Cyl 5 Cyl 6
°C Intake valve mm
Gas pres before step-down reg 1 / 2 mbar Exhaust valve mm
Gas pres after step-down reg 1 / 2 mbar Cyl 7 Cyl 8
Gas blending Gas 1 / Gas 3 & % Intake valve mm
CH4 content or Natural Gas % / NG Exhaust valve mm
Nominal electrical power 50 / 100% kW Notes
O2 value Vol./%
CO value mg/Nm 3
NOX value mg/Nm 3
O2 correction %
Lubricating oil type
Oil and oil filters changed? Yes No Coolant changed? Yes No
Generator bearings changed? Yes No Generator bearings lubed? Yes No
Generator bearing grease type

Technician 1
Technician 2
