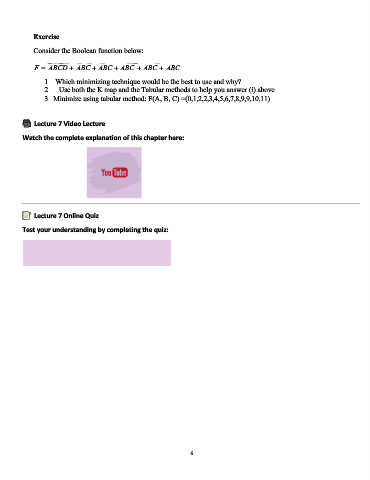

Exercise

Consider the Boolean function below:

F = ABCD + ABC + ABC + ABC + ABC + ABC

1 Which minimizing technique would be the best to use and why?
2 Use both the K map and the Tabular methods to help you answer (i) above
3 Minimize using tabular method: F(A, B, C) =(0,1,2,2,3,4,5,6,7,8,9,9,10,11)

Lecture 7 Video Lecture

Watch the complete explanation of this chapter here:

Lecture 7 Online Quiz

Test your understanding by completing the quiz:
