Aircraft general knowledge

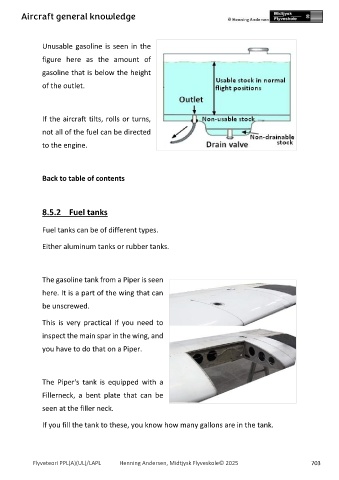

Unusable gasoline is seen in the

figure here as the amount of

gasoline that is below the height

of the outlet.

If the aircraft tilts, rolls or turns,

not all of the fuel can be directed

to the engine.

Back to table of contents

8.5.2 Fuel tanks

Fuel tanks can be of different types.

Either aluminum tanks or rubber tanks.

The gasoline tank from a Piper is seen

here. It is a part of the wing that can

be unscrewed.

This is very practical if you need to

inspect the main spar in the wing, and

you have to do that on a Piper.

The Piper's tank is equipped with a

Fillerneck, a bent plate that can be

seen at the filler neck.

If you fill the tank to these, you know how many gallons are in the tank.
