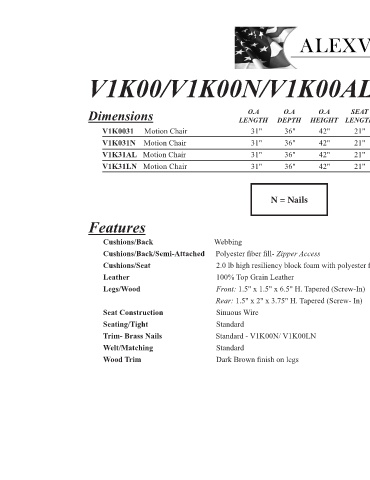

V1K00/V1K00N/V1K00AL/V1K00LN Series

SEAT
O.A
SEAT
SEAT
O.A
O.A
Dimensions LENGTH DEPTH HEIGHT LENGTH DEPTH HEIGHT
V1K0031 Motion Chair 31" 36" 42" 21" 20" 21"
V1K031N Motion Chair 31" 36" 42" 21" 20" 21"
V1K31AL Motion Chair 31" 36" 42" 21" 20" 21"
V1K31LN Motion Chair 31" 36" 42" 21" 20" 21"
May 20

N = Nails

Features

Cushions/Back Webbing
Cushions/Back/Semi-Attached Polyester fiber fill- Zipper Access

Cushions/Seat 2.0 lb high resiliency block foam with polyester fiber wrap
Leather 100% Top Grain Leather
Legs/Wood Front: 1.5" x 1.5" x 6.5" H. Tapered (Screw-In)

Rear: 1.5" x 2" x 3.75" H. Tapered (Screw- In)
Seat Construction Sinuous Wire V1K00AL V1K00

Seating/Tight Standard
Trim- Brass Nails Standard - V1K00N/ V1K00LN
Welt/Matching Standard

Wood Trim Dark Brown finish on legs

V1K00LN V1K00N
