Intrusion Alarm Systems | ISN‑CAS Adjustable Screw Head Contacts

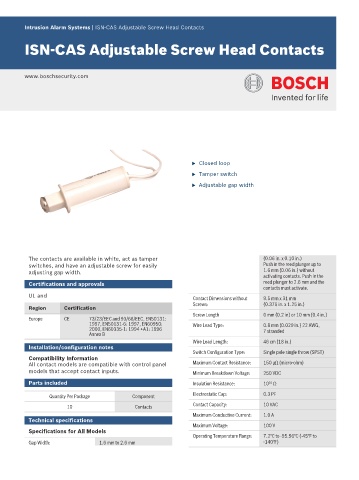

ISN‑CAS Adjustable Screw Head Contacts

www.boschsecurity.com

u Closed loop
u Tamper switch

u Adjustable gap width

The contacts are available in white, act as tamper (0.06 in. x 0.10 in.)
switches, and have an adjustable screw for easily Push in the reed plunger up to
adjusting gap width. 1.6 mm (0.06 in.) without
activating contacts. Push in the
Certifications and approvals reed plunger to 2.6 mm and the
contacts must activate.
UL and Contact Dimensions without 9.5 mm x 31 mm
Screws: (0.375 in. x 1.25 in.)
Region Certification
Screw Length 6 mm (0.2 in) or 10 mm (0.4 in.)
Europe CE 73/23/EEC and 93/68/EEC, EN50131:
1997, EN50131-6: 1997, EN60950: Wire Lead Type: 0.8 mm (0.029 in.) 22 AWG,
2000, EN60335-1: 1994 +A1: 1996 7 stranded
Annex B
Wire Lead Length: 46 cm (18 in.)
Installation/configuration notes
Switch Configuration Type: Single pole single throw (SPST)
Compatibility Information
All contact models are compatible with control panel Maximum Contact Resistance: 150 μΩ (micro-ohm)
models that accept contact inputs. Minimum Breakdown Voltage: 250 VDC
Parts included Insulation Resistance: 10 Ω
10
Quantity Per Package Component Electrostatic Cap: 0.3 PF
10 Contacts Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
Technical specifications
Maximum Voltage: 100 V
Specifications for All Models
Operating Temperature Range: 7.2°C to -95.56°C (-45°F to
Gap Width: 1.6 mm to 2.6 mm -140°F)
