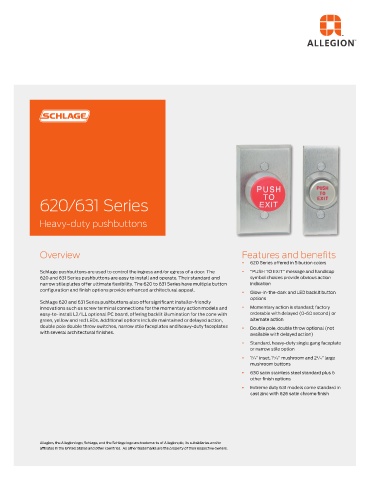

Page 45 - Security-Submittal Combined

620/631 Series

Heavy-duty pushbuttons

Overview Features and benefits

§ 620 Series offered in 5 button colors
Schlage pushbuttons are used to control the ingress and/or egress of a door. The § “PUSH TO EXIT” message and handicap
620 and 631 Series pushbuttons are easy to install and operate. Their standard and symbol choices provide obvious action
narrow stile plates offer ultimate flexibility. The 620 to 631 Series have multiple button indication
configuration and finish options provide enhanced architectural appeal.
§ Glow-in-the-dark and LED backlit button
options
Schlage 620 and 631 Series pushbuttons also offer significant installer-friendly
innovations such as screw terminal connections for the momentary action models and § Momentary action is standard; factory
easy-to-install L2/ILL optional PC board, offering backlit illumination for the cone with orderable with delayed (0-60 second) or
green, yellow and red LEDs. Additional options include maintained or delayed action, alternate action
double pole double throw switches, narrow stile faceplates and heavy-duty faceplates § Double pole, double throw optional (not
with several architectural finishes. available with delayed action)
§ Standard, heavy-duty single gang faceplate
or narrow stile option
1
3
5
§ 1 ⁄4” inset, 1 ⁄8” mushroom and 2 ⁄4” large
mushroom buttons
§ 630 satin stainless steel standard plus 6
other finish options
§ Extreme duty 631 models come standard in
cast zinc with 626 satin chrome finish
