Page 14 - 2020 Kubota Lifestyle Brochure

FOLDING CUTTERS

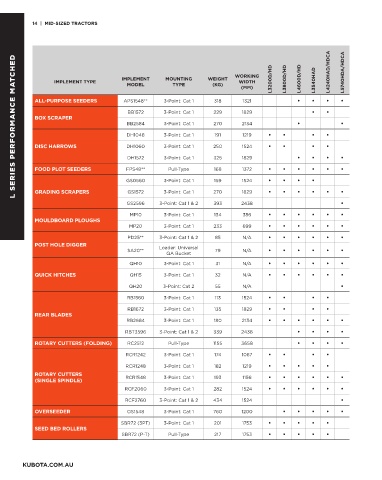

14 | MID-SIZED TRACTORS
MID-SIZED TRACTORS | 15

RCR2512 SERIES: 40-100 HP
3.7m (12ft.) Working Width
L SERIES PERFORMANCE MATCHED
10 Gauge Deck Thickness
B SERIES PERFORMANCE MATCHED
7 Gauge Sidewall Thickness
WORKING L4240HAD/HDCA L5740HDA/HDCA 1 /2” (38mm) Diameter Cutting Capacity
IMPLEMENT MOUNTING WEIGHT L3200D/HD L3800D/HD L4600D/HD
IMPLEMENT TYPE WIDTH L3540HAD
MODEL TYPE (KG) Front & Rear Chain Guards
(MM)
ALL-PURPOSE SEEDERS APS1548** 3-Point: Cat 1 318 1321 • • • • DISC HARROW

BB1572 3-Point: Cat 1 229 1829 • •

BOX SCRAPER DH10 SERIES: UP TO 40 HP DH15 SERIES: MAX. 65 HP
BB2584 3-Point: Cat 1 270 2134 • •
Notched or Smooth Discs 18” Notched or Smooth Discs
DH1048 3-Point: Cat 1 191 1219 • • • •
48” & 60” (1.2m & 1.5m) 72” (1.8m) Working Width
DISC HARROWS DH1060 3-Point: Cat 1 250 1524 • • • • Working Widths
Adjustable Gang Angles; 4 Front, 3 Rear
DH1572 3-Point: Cat 1 325 1829 • • • • 2” Square Tube Frame 7-1/2” Blade Spacing
FOOD PLOT SEEDERS FPS48** Pull-Type 168 1372 • • • • • • DH25 SERIES: 40-100 HP

GS0560 3-Point: Cat 1 159 1524 • • • • 96” (2.4m) Working Width
20” or 22” Notched Blades
GRADING SCRAPERS GS1572 3-Point: Cat 1 270 1829 • • • • • •
3” Square Frame
GS2596 3-Point: Cat 1 & 2 393 2438 •
Angle Front & Rear Gangs up to 21 Degrees
MP10 3-Point: Cat 1 134 356 • • • • • •
MOULDBOARD PLOUGHS
MP20 3-Point: Cat 1 233 699 • • • • • •
PD25** 3-Point: Cat 1 & 2 85 N/A • • • • • •
POST HOLE DIGGER QUICK HITCH
SA20** Loader: Universal 79 N/A • • • • • •
QA Bucket

QH10 3-Point: Cat 1 31 N/A • • • • • • QH10 SERIES: Cat 1
QUICK HITCHES QH15 3-Point: Cat 1 32 N/A • • • • • • 909 kg. Lifting Capacity
Non-standard Lower Lugs
QH20 3-Point: Cat 2 55 N/A •
(no bushings required)
RB1560 3-Point: Cat 1 113 1524 • • • • QH15 SERIES: Cat 1 adjustable

RB1672 3-Point: Cat 1 135 1829 • • • • 909 kg. Lifting Capacity
REAR BLADES
RB2684 3-Point: Cat 1 180 2134 • • • • • • Automatic Lock on Lower 3-Point Arms
Unlock from Tractor Seat
RBT3596 3-Point: Cat 1 & 2 339 2438 • • • •
Optional Floating Top Link
ROTARY CUTTERS (FOLDING) RC2512 Pull-Type 1155 3658 • • • •
QH20 SERIES: Cat 2
RCR1242 3-Point: Cat 1 174 1067 • • • • 1636 kg. Lifting Capacity
RCR1248 3-Point: Cat 1 182 1219 • • • • • Stationary Top Hitch
ROTARY CUTTERS Automatic Lock on Lower 3-Point Arms
(SINGLE SPINDLE) RCR1548 3-Point: Cat 1 193 1156 • • • • • •
RCF2060 3-Point: Cat 1 282 1524 • • • • • •
OVERSEEDER
RCF2760 3-Point: Cat 1 & 2 434 1524 •

OVERSEEDER OS1548 3-Point: Cat 1 760 1200 • • • • • OS15: 25-60 HP

SBR72 (3PT) 3-Point: Cat 1 201 1753 • • • • • 48” (1.2m) Working Width
SEED BED ROLLERS
SBR72 (P-T) Pull-Type 217 1753 • • • • • 0” – 1-1/2” Depth Adjustment
2” or 3” Knife Spacing
Optional Small Seeds Attachment
& Slit Seeder Attachment
KUBOTA.COM.AU
