PT MURINDA SENTRA BAJA

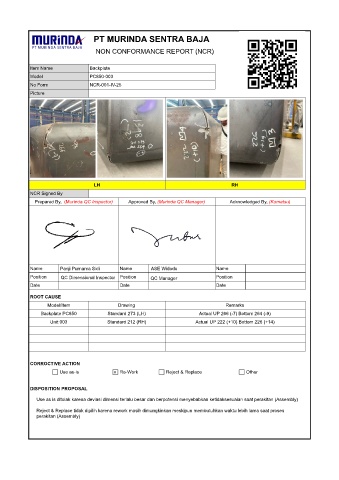

NON CONFORMANCE REPORT (NCR)

Item Name Backplate
Model PC850-003
No Form NCR-001-IV-25

LH RH
NCR Signed By
Prepared By, (Murinda QC Inspector) Approved By, (Murinda QC Manager) Acknowledged By, (Komatsu)

Name Panji Purnama Sidi Name ASE Widodo Name
Position QC Dimensional Inspector Position QC Manager Position
Date Date Date

ROOT CAUSE
Model/Item Drawing Remarks
Backplate PC850 Standard 273 (LH) Actual UP 266 (-7) Bottom 264 (-9)
Unit 003 Standard 212 (RH) Actual UP 222 (+10) Bottom 226 (+14)

CORROCTIVE ACTION
Use as-is v Re-Work Reject & Replace Other

DISPOSITION PROPOSAL
Use as is ditolak karena deviasi dimensi terlalu besar dan berpotensi menyebabkan ketidaksesuaian saat perakitan (Assembly)
Reject & Replace tidak dipilih karena rework masih dimungkinkan meskipun membutuhkan waktu lebih lama saat proses
perakitan (Assembly)
