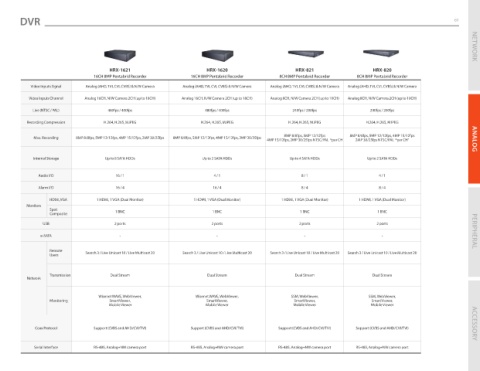

DVR 61
HRX-1621 HRX-1620 HRX-821 HRX-820 NETWORK
16CH 8MP Pentabrid Recorder 16CH 8MP Pentabrid Recorder 8CH 8MP Pentabrid Recorder 8CH 8MP Pentabrid Recorder
Video Inputs Signal Analog (AHD, TVI, CVI, CVBS) & N/W Camera Analog (AHD, TVI, CVI, CVBS) & N/W Camera Analog (AHD, TVI, CVI, CVBS) & N/W Camera Analog (AHD, TVI, CVI, CVBS) & N/W Camera
Video Inputs Channel Analog 16CH, N/W Camera 2CH (up to 18CH) Analog 16CH, N/W Camera 2CH (up to 18CH) Analog 8CH, N/W Camera 2CH (up to 10CH) Analog 8CH, N/W Camera 2CH (up to 10CH)
Live (NTSC / PAL) 480fps / 400fps 480fps / 400fps 240fps / 200fps 240fps / 200fps
Recording Compression H.264, H.265, MJPEG H.264, H.265, MJPEG H.264, H.265, MJPEG H.264, H.265, MJPEG
Max. Recording 8MP 8/8fps, 5MP 12/12fps, 4MP 15/12fps, 2MP 30/25fps 8MP 8/8fps, 5MP 12/12fps, 4MP 15/12fps, 2MP 30/25fps 8MP 8/8fps, 5MP 12/12fps 8MP 8/8fps, 5MP 12/12fps, 4MP 15/12fps
4MP 15/12fps, 2MP 30/25fps NTSC/PAL *per CH 2MP 30/25fps NTSC/PAL *per CH" ANALOG
Internal Storage Up to 8 SATA HDDs Up to 2 SATA HDDs Up to 4 SATA HDDs Up to 2 SATA HDDs
Audio I/O 16 / 1 4 / 1 8 / 1 4 / 1
Alarm I/O 16 / 4 16 / 4 8 / 4 8 / 4
HDMI, VGA 1 HDMI, 1 VGA (Dual Monitor) 1 HDMI, 1 VGA (Dual Monitor) 1 HDMI, 1 VGA (Dual Monitor) 1 HDMI, 1 VGA (Dual Monitor)
Monitors
Spot 1 BNC 1 BNC 1 BNC 1 BNC
Composite
USB 2 ports 2 ports 2 ports 2 ports
e-SATA - - - - PERIPHERAL
Remote Search 3 / Live Unicast 10 / Live Multicast 20 Search 3 / Live Unicast 10 / Live Multicast 20 Search 3 / Live Unicast 10 / Live Multicast 20 Search 3 / Live Unicast 10 / Live Multicast 20
Users
Transmission Dual Stream Dual Stream Dual Stream Dual Stream
Network
Wisenet WAVE, WebViewer, Wisenet WAVE, WebViewer, SSM, WebViewer, SSM, WebViewer,
Monitoring SmartViewer, SmartViewer, SmartViewer, SmartViewer,
Mobile Viewer Mobile Viewer Mobile Viewer Mobile Viewer
Coax Protocol Support (CVBS and AHD/CVI/TVI) Support (CVBS and AHD/CVI/TVI) Support (CVBS and AHD/CVI/TVI) Support (CVBS and AHD/CVI/TVI) ACCESSORY
Serial Interface RS-485, Analog+NW camera port RS-485, Analog+NW camera port RS-485, Analog+NW camera port RS-485, Analog+NW camera port
