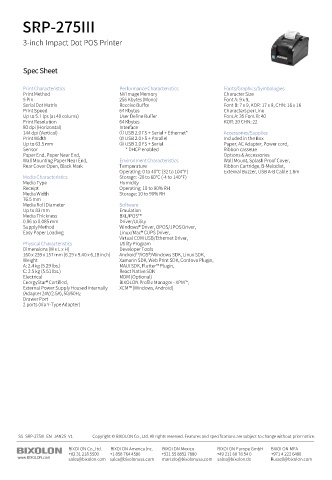

SRP-275III



         3-inch Impact Dot POS Printer



         Spec Sheet


         Print Characteristics          Performance Characteristics       Fonts/Graphics/Symbologies
         Print Method                   NV Image Memory                   Character Size
         9 Pin                          256 Kbytes (Mono)                 Font A: 9 x 9,
         Serial Dot Matrix              Receive Buffer                    Font B: 7 x 9, KOR: 17 x 9, CHN: 16 x 16
         Print Speed                    64 Kbytes                         Characters per Line
         Up to 5.1 lps (at 40 colums)   User Define Buffer                Font A: 35 Font B: 40
         Print Resolution               64 Kbytes                         KOR: 20 CHN: 22
         80 dpi (Horizontal)            Interface
         144 dpi (Vertical)             ① USB 2.0 FS + Serial + Ethernet*   Accessories/Supplies
         Print Width                    ② USB 2.0 FS + Parallel           Included in the Box
         Up to 63.5 mm                  ③ USB 2.0 FS + Serial             Paper, AC Adapter, Power cord,
         Sensor                               * DHCP enabled              Ribbon cassette
         Paper End, Paper Near End,                                       Options & Accessories
         Wall Mounting Paper Near End,   Environment Characteristics      Wall Mount, Splash Proof Cover,
         Rear Cover Open, Black Mark    Temperature                       Ribbon Cartridge, B-Melodist,
                                        Operating: 0 to 40℃ (32 to 104℉)  External Buzzer, USB A-B Cable 1.8m
         Media Characteristics          Storage: -20 to 60℃ (-4 to 140℉)
         Media Type                     Humidity
         Receipt                        Operating: 10 to 80% RH
         Media Width                    Storage: 10 to 90% RH
         76.5 mm
         Media Roll Diameter            Software
         Up to 83 mm                    Emulation
         Media Thickness                BXL/POS
         0.06 to 0.085 mm               Driver/Utility
         Supply Method                  Windows® Driver, OPOS/JPOS Driver,
         Easy Paper Loading             Linux/Mac® CUPS Driver,
                                        Virtual COM USB/Ethernet Driver,
         Physical Characteristics       Utility Program
         Dimensions (W x L x H)         Developer Tools
         160 x 239 x 157 mm (6.29 x 9.40 x 6.18 inch)  Android /iOS®/Windows SDK, Linux SDK,
         Weight                         Xamarin SDK, Web Print SDK, Cordova Plugin,
         A: 2.4 kg (5.29 lbs.)          MAUI SDK, Flutter  Plugin,
         C: 2.5 kg (5.51 lbs.)          React Native SDK
         Electrical                     MDM (Optional)
         EnergyStar® Certified,         BIXOLON Profile Manager - XPM ,
         External Power Supply Housed Internally   XCM  (Windows, Android)
         (Adapter 24V/2.5A), 50/60Hz
         Drawer Port
         2 ports (Via Y-Type Adapter)
