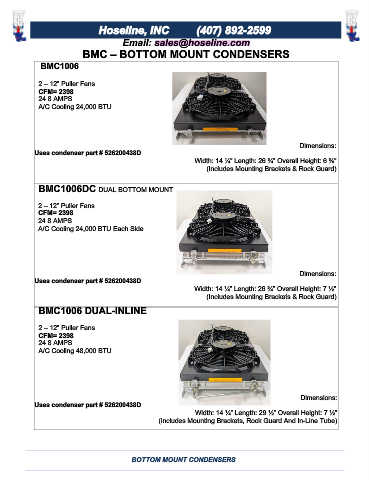

Hoseline, INC                   (407) 892-2599
                                         Email: sales@hoseline.com

                            BMC – BOTTOM MOUNT CONDENSERS
              BMC1006


             2 – 12” Puller Fans
             CFM= 2398
             24.8 AMPS
             A/C Cooling 24,000 BTU






                                                                                                    Dimensions:
            Uses condenser part # 526200438D
                                                                 Width: 14 ¼” Length: 26 ¾” Overall Height: 6 ⅜”
                                                                     (Includes Mounting Brackets & Rock Guard)


             BMC1006DC DUAL BOTTOM MOUNT

             2 – 12” Puller Fans
             CFM= 2398
             24.8 AMPS
             A/C Cooling 24,000 BTU Each Side







                                                                                                    Dimensions:
            Uses condenser part # 526200438D
                                                                 Width: 14 ¼” Length: 26 ¾” Overall Height: 7 ½”
                                                                     (Includes Mounting Brackets & Rock Guard)

             BMC1006 DUAL-INLINE


             2 – 12” Puller Fans
             CFM= 2398
             24.8 AMPS
             A/C Cooling 48,000 BTU







                                                                                                    Dimensions:
            Uses condenser part # 526200438D
                                                                 Width: 14 ¼” Length: 29 ½” Overall Height: 7 ½”
                                                     (Includes Mounting Brackets, Rock Guard And In-Line Tube)






                                            BOTTOM MOUNT CONDENSERS
