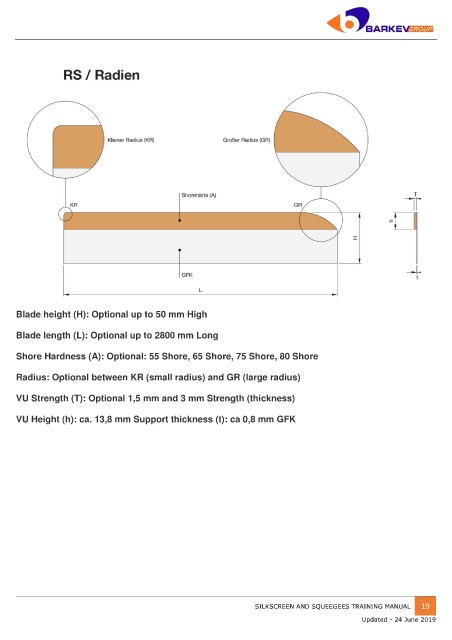

Blade height (H): Optional up to 50 mm High
Blade length (L): Optional up to 2800 mm Long
Shore Hardness (A): Optional: 55 Shore, 65 Shore, 75 Shore, 80 Shore
Radius: Optional between KR (small radius) and GR (large radius)
VU Strength (T): Optional 1,5 mm and 3 mm Strength (thickness)
VU Height (h): ca. 13,8 mm Support thickness (t): ca 0,8 mm GFK
