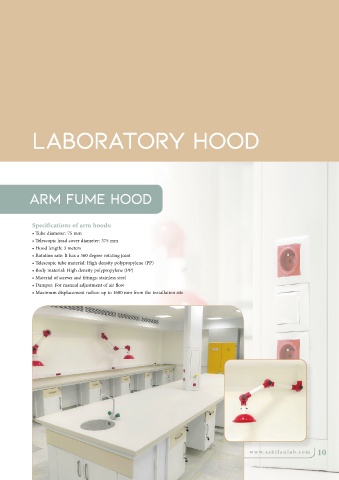

Page 10 - Cataloge Doris.indd
P. 10
Laboratory hood
Arm Fume Hood
Specifications of arm hoods:
• Tube diameter: 75 mm
• Telescopic head cover diameter: 375 mm
• Hood length: 3 meters
• Rotation rate: It has a 360 degree rotating joint
• Telescopic tube material: High density polypropylene (PP)
• Body material: High density polypropylene (PP)
• Material of screws and ttings: stainless steel
• Damper: For manual adjustment of air ow
• Maximum displacement radius: up to 1600 mm from the installation site
