Attention! In the case of bolted joints fixing protective apron to metal cover, tighten the
bolted joints according to Table 3.
8) STEP IX
• Disconnect the milled connector from the scythe-connector (For models with hydraulic
cylinder) (Fig. 37 item 2),
• Unscrew the mounting bolts fixing the scythe-connector to the main frame (Fig. 37,
item 1) and the scythe-connector remove tie rod-knife from the machine.

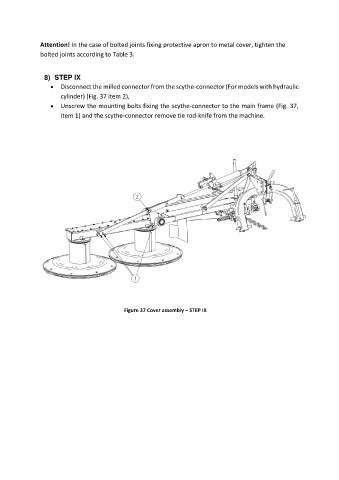

Figure 37 Cover assembly – STEP IX
