Page 115 - Tar River Products Parts
P. 115

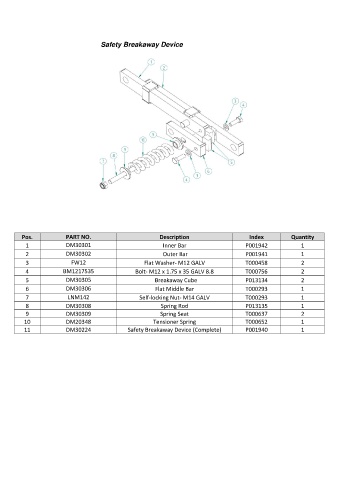

Safety Breakaway Device
Pos. PART NO. Description Index Quantity
1 DM30301 Inner Bar P001942 1
2 DM30302 Outer Bar P001941 1
3 FW12 Flat Washer- M12 GALV T000458 2
4 BM1217535 Bolt- M12 x 1.75 x 35 GALV 8.8 T000756 2
5 DM30305 Breakaway Cube P013134 2
6 DM30306 Flat Middle Bar T000293 1
7 LNM142 Self-locking Nut- M14 GALV T000293 1
8 DM30308 Spring Rod P013135 1
9 DM30309 Spring Seat T000637 2
10 DM20348 Tensioner Spring T000652 1
11 DM30224 Safety Breakaway Device (Complete) P001940 1
