P. 347
1
2 3

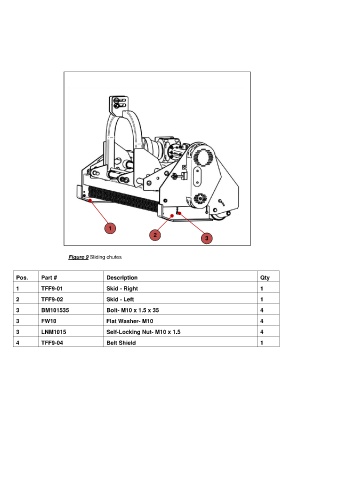

Figure 9 Sliding chutes
Pos. Part # Description Qty
1 TFF9-01 Skid - Right 1
2 TFF9-02 Skid - Left 1
3 BM101535 Bolt- M10 x 1.5 x 35 4
3 FW10 Flat Washer- M10 4
3 LNM1015 Self-Locking Nut- M10 x 1.5 4
4 TFF9-04 Belt Shield 1
