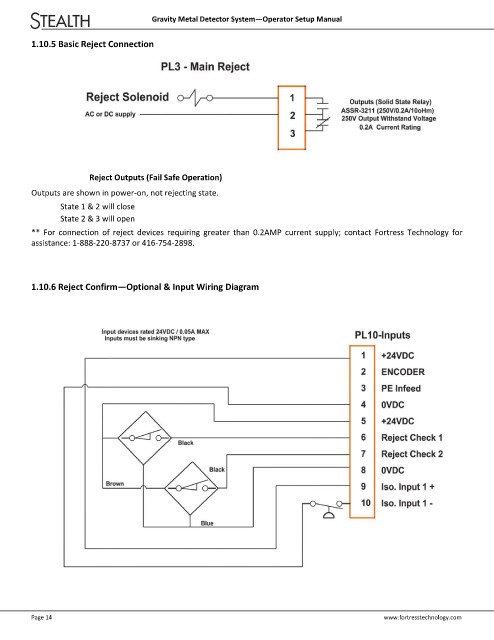

Gravity Metal Detector System—Operator Setup Manual
1.10.5 Basic Reject Connection
Reject Outputs (Fail Safe Operation)
Outputs are shown in power‐on, not rejecting state.
State 1 & 2 will close
State 2 & 3 will open
** For connection of reject devices requiring greater than 0.2AMP current supply; contact Fortress Technology for
assistance: 1‐888‐220‐8737 or 416‐754‐2898.
1.10.6 Reject Confirm—Optional & Input Wiring Diagram
