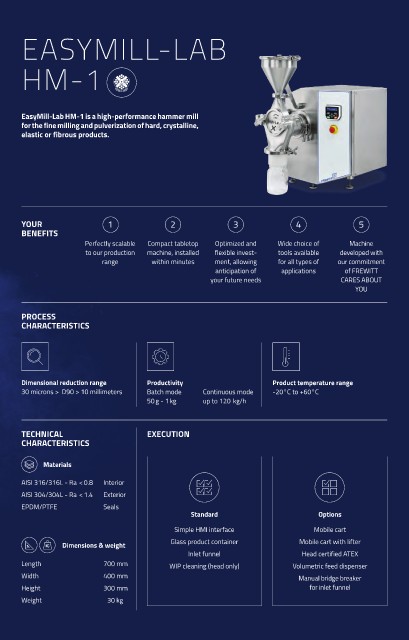

EASYMILL-LAB
HM-1
EasyMill-Lab HM-1 is a high-performance hammer mill
for the fine milling and pulverization of hard, crystalline,
elastic or fibrous products.
YOUR 1 2 3 4 5
BENEFITS
Perfectly scalable Compact tabletop Optimized and Wide choice of Machine
to our production machine, installed flexible invest- tools available developed with
range within minutes ment, allowing for all types of our commitment
anticipation of applications of FREWITT
your future needs CARES ABOUT
YOU
PROCESS
CHARACTERISTICS
Dimensional reduction range Productivity Product temperature range
30 microns > D90 > 10 millimeters Batch mode Continuous mode -20°C to +60°C
50 g - 1 kg up to 120 kg/h
TECHNICAL EXECUTION
CHARACTERISTICS
Materials
AISI 316/316L - Ra < 0.8 Interior
AISI 304/304L - Ra < 1.4 Exterior
EPDM/PTFE Seals
Standard Options
Simple HMI interface Mobile cart
Dimensions & weight Glass product container Mobile cart with lifter
Inlet funnel Head certified ATEX
Length 700 mm WIP cleaning (head only) Volumetric feed dispenser
Width 400 mm Manual bridge breaker
Height 300 mm for inlet funnel
Weight 30 kg
