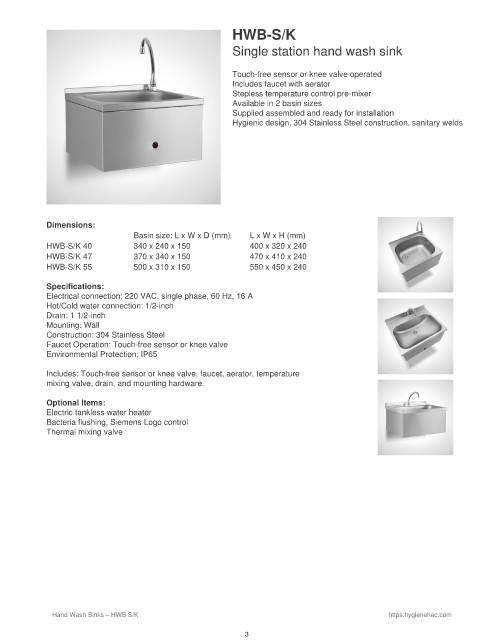

Page 1493 - Flipbook_SolidDesignSoutheast2020

HWB-S/K

Single station hand wash sink

Touch-free sensor or knee valve operated
Includes faucet with aerator
Stepless temperature control pre-mixer
Available in 2 basin sizes
Supplied assembled and ready for installation
Hygienic design, 304 Stainless Steel construction, sanitary welds

Dimensions:
Basin size: L x W x D (mm) L x W x H (mm)
HWB-S/K 40 340 x 240 x 150 400 x 320 x 240
HWB-S/K 47 370 x 340 x 150 470 x 410 x 240
HWB-S/K 55 500 x 310 x 150 550 x 450 x 240

Specifications:
Electrical connection: 220 VAC, single phase, 60 Hz, 16 A
Hot/Cold water connection: 1/2-inch
Drain: 1 1/2-inch
Mounting: Wall
Construction: 304 Stainless Steel
Faucet Operation: Touch-free sensor or knee valve
Environmental Protection: IP65

Includes: Touch-free sensor or knee valve, faucet, aerator, temperature
mixing valve, drain, and mounting hardware.

Optional Items:
Electric tankless water heater
Bacteria flushing, Siemens Logo control
Thermal mixing valve

Hand Wash Sinks – HWB S/K https:hygienehec.com

3
